Improved LPO6938-4P-WB antenna now released

EAD is pleased to introduce an improved LPO6938-4P-WB antenna based on a new UV-resistant ASA bracket. With possibilities for wall, pole and rail, mounting, this antenna is designed to complement 5G routers.

Our new ASA bracket offers more mounting options for external applications such as security, wireless CCTV, leisure marine and network resilience. With solid gain figures across the bands, the LPO6938 offers robust performance in a reduced height form factor. We have also added a strain relief plug where the cables exit the antenna for durability and to protect against moisture ingress.

For quotes and lead times for our improved LPO6938-4P-WB antenna, please contact us or your local EAD distributor.

Medallion II MIMO 5G FR1 multiband antenna

The Medallion II MIMO 5G FR1 multiband antenna from PCTEL is an ideal solution for industrial IoT applications. This GNSS multiband antenna includes two 5G FR1 ready ports, and an optional dual band 2.4/5 GHz port for WiFi coverage. Its proprietary, built-in GNSS technology features superior out-of-band rejection filtering for optimal operation with industrial IoT wireless networks. This antenna platform is housed in a rugged, UV-stable housing, available in black or white color options.

Key features include:

  • Dual cellular ports for 5G FR1 networks, including CBRS bands
  • Low Profile 1-1/3-inch-tall housing for permanent mount installations with limited overhead clearance
  • GNSS compatibility, covering global systems: (GPS L1; GALILEO E1; GLONASS L1; QZSS L1; BEIDOU B1)
  • Optional dual band 2.4/5 GHz WiFi port
  • Suitable for vehicular rooftop outdoor or indoor applications
  • Durable, UV-stable white or black radome options
  • Ingress protection: IPX7 rating

The GLLPDLTE-W version of the Medallion II MIMO 5G FR1 is a stock part. Please contact us for pricing.

Check out the Trooper II for a 6 port multi-element low profile antenna.

Maverik 4 Port MIMO 5G/4G low profile antenna

The Maverik 4 Port MIMO is a 5G/4G low profile antenna designed for mounting onto a metal surface. Offering 4 x 700-3800 MHz ports, this antenna is compact with a height of under 35mm. Ideal for transportation/telematics, security panels, wireless CCTV and signage/information systems, the Maverik antenna is permanently mounted and suitable for indoor or outdoor deployments.

With rectangular footprint in dimensions of approximately 202 x 107mm, the Maverik 4 Port MIMO antennas is well suited to installation on vehicles as well as cabinets, kiosks and other wireless enclosures. Each antenna element is fed by one cable, the cable length and connector type are customizable.

For a two port MIMO 4G antenna, check out the CMO antenna.

QAD – Six Port 5G antenna Trooper II from PCTEL introduced

The Trooper II Six Port 5G antenna from PCTEL has been introduced. This antenna is compatible with the leading 5G OEM routers, featuring six high-efficiency 5G FR1 antenna elements that deliver fast and reliable connectivity for voice, video, and data transmissions. It also contains PCTEL’s proprietary high-rejection, multi-constellation GNSS L1 L2 L5technology for high precision location tracking

With excellent RF performance, low profile form factor and slim footprint, it is ideal for industrial IoT, intelligent transportation, public safety and enterprise applications.

Check out the Trooper II product page here.

For more information on the Trooper II Six Port 5G antenna, pricing and availability, please contact us.

LPO6938-4P-NB-SM4 5G four port MIMO surface mount antenna

The LMO6938-4p-NB-SM4 is a 5G four port MIMO surface mount antenna for permanent mounting. Operating from 698-3800 MHz covering 5G and 4G/LTE frequencies, this antenna has four wideband radiating elements.

Offering robust RF performance in a compact housing, the LPO6938-4P-NB-SM4 is ideal for environments where multiple antenna elements are required helping to reduce the number of physical antennas deployed in installations for 5G bonded applications, high bandwidth/ high speed networks, 5G access and high definition video deployments.

The LPO6938-4P 5G/4G four port MIMO compact outdoor omni antenna is terminated in 4 x SMA-Male pigtails as standard and can be combined with RF195, RF240 and RF400 low loss cables customised to suit the application. When correctly mounted onto a flat surface the antenna has an IP67 ingress protection rating.





LPO6938-4P-WB 5G/4G MIMO outdoor wall/pole omni antenna

The LPO6938-4P-WB 5G/4G MIMO compact outdoor omni antenna is designed for pole, wall or enclosure mount installations for 5G / 4G access applications. Based on our leading LPO antenna platform, this antenna is, as standard, supplied on a UV-resistant ASA mounting bracket.

Offering robust RF performance in a compact housing, the LPO6938-4P is ideal for environments where multiple antenna elements are required helping to reduce the number of physical antennas deployed in installations for 5G bonded applications, high bandwidth/ high speed networks, 5G access and high definition video deployments.

The LPO6938-4P-WB 5G/4G MIMO compact outdoor omni antenna in terminated in 4 x SMA-Male pigtails as standard and can be combined with low loss extension cables customised to suit the application. This antenna when mounted correctly on the mounting bracket or enclosure is waterproof to IP67 standard.

For a two port, dual polarised MIMO antenna covering 5G, check out the LMO6138 antenna which for customers in the UK can be purchased via the Connex webshop.

For more information on the LPO6938-4P-WB, please contact us or your local EAD distributor/reseller.

Compact 5G Outdoor Omni 4 Port MIMO Antenna introduced

A Compact 5G outdoor omni 4 port MIMO antenna has been introduced by EAD. The LPO6938-4P antenna offers an innovative solution for 5G/4G access where a discreet, but high performing antenna is required.

Populated with four wideband 698-3800 MHz antenna elements, the antenna is housed in our popular LPO radome and is mounted on a very durable 316 Stainless Steel bracket for pole- or wall-mounting. Fed by 4 SMA pigtail cables, the antenna can be combined with RF195, RF240 and RF400 low loss cable assemblies according to the requirements of the installation.

Ideal for bonded applications, broadband access requiring multiple antenna ports and high bandwidth applications, the LPO6938-4P packs a punch despite its compact measurements. This 5G compact outdoor omni reduces the requirements for antennas enabling 4 port routers to use one antenna instead of two 2 port antennas.

For pricing and availability on the LPO6938-4P antenna, please contact us.

For a dual polarised MIMO Omni covering 698-3800 MHz, check out our LMO6138 antenna which is also available from our webshop.

WIMO2458 4-Port WiFi Dual Band Omni-directional Antenna

The WIMO2458 4-Port WiFi Dual Band Omni-directional Antenna is designed for continuous outdoor deployment. Housing four 2.4/5 GHz antenna elements, the WIMO2458 antenna is a compact solution for wall, pole or non-metal enclosure mounting.

Ideal for outdoor pole- and wall-mounted applications in environments where traditional ceiling mount antennas are undesirable, the WIMO2458 is a compact alternative for dual band WLAN installations, buildings and campuses hospitality, transportation and retail.

With almost 4 dBi gain in the 2.4 GHz band and more than 5 dBi gain in the 5 GHz band, the WIMO2458 4-Port WiFi antenna offers consistent RF performance across the bands. With a radome height of 187mm and a diameter at the base of 106mm, the antenna is relatively discreet for most installations and can be fed by low loss coaxial cables as required.

The WIMO2458 is part of our MIMO Omni range – check out the 5/GLTE version the LMO6138,

LMO7270 MIMO antennas available in Italy from Reweb

EAD’s popular LMO7270 MIMO antennas are now available from Reweb, our distribution partner for these antennas in Italy.

The LMO product line from EAD encompasses the LMO7270 antenna, the LMO6138 antenna – the 4G/5G version, a LMO7270/G with an integrated active GNSS antenna and the LMO4547 antenna for LTE450 applications.

The LMO antennas are ideal for 4G / 5G access applications, wireless CCTV and security, bonded 4G deployments, lesiure marine and fixed or mobile broadband services. With a variety of mounting options including pole, wall and 1″ 14 marine mounts, the LMO antennas are robust, compact and offer consistent RF performance.

Reweb is based in Reggio Emilia in Italy. Phone: +39 0522 171 2600. Contact: Massimiliano Cavandol m.cavandoli@reweb.it

More information in Italian can be found here.





Innovative LTE 450 antenna solutions from EAD

LTE 450 antenna solutions are available from EAD. Based on our portfolio of innovative designs, antennas can be supplied for LTE 410 or LTE 450 networks.

Offering both MIMO and SISO antenna solutions, EAD has a range of omni-directional antennas to complete LTE 450 and LTE 410 deployments.

The LMO4547 antenna is a wall-mount, pole-mount or non-metal surface mount, dual polarized MIMO omni-antenna. With one vertically polarized element and one horizontally polarized element, the LMO4547 is compact and designed for permanent outdoor deployment. It can be deployed for fixed site access, mobile applications or off-shore marine environments.

The WCO-450-MIMO-WMB is a compact MIMO, durable and robust 450-470 MHz outdoor omni antenna. Based on our proven WCO (waterproof compact omni) platform, this antenna can be wall-mounted and is ideal for commercial and industrial applications requiring LTE 450 access. This antenna can easily be re-tuned for 410-430 MHz making it ideal for LTE 410 applications too.

The WCO-450-WMB is a wall-mount 450-470 MHz SISO antenna designed for continuous outdoor deployment. The UV-resistant LURAN sheath is mounted onto N-Female connector barrel which is attached to a stainless steel L-bracket.

All 3 antennas are terminated directly in a connector or a short pigtail so can be easily deployed with jumper cables such as RF195 or RF240.

For a mobile applications where a non-permanently mount antenna is required, the LP-MAG-450 is robust solution. Once again based on our proven WCO platform, the WCO antenna is married with a rugged magnetic mount thereby offering a durable installation for public service, industrial and commercial vehicles and systems.

For terminal mount the WCO 410 and 450 MHz antennas can be fitted with TNC Male / TNC-Female / N-Male and N-Female connectors to to provide terminal mount or through-hole mount antennas for fixed and mobile terminals and enclosures.

For more information and pricing on our LTE 450 antennas and LTE 410 antennas, please contact us.







LMO6138 5G MIMO omni antenna now shipping

EAD is pleased to announced that the 5G version of the popular LMO7270 antenna is now shipping. The LMO6138 5G MIMO antenna operates at frequencies from 617 MHz to 3800 MHz covering the most widely used 5G, 4G and LTE frequencies.

Just like the LMO7270 antenna, the LMO6138 is an outdoor pole, wall or non-metal surface mount antenna. With dual polarized elements, this antenna offers exceptional performance in a compact radome and its flexibility of mounting options facilitates many types of installation.

Combined with RF195, RF240 and RF400 cables, the LMO6138 can be adapted to many installations for security, HD video, business continuity and broadband access applications.

For retail customers in Europe, the LMO6138 5G MIMO antenna can be purchased via the Connex Webshop. For larger quantities, please contact your local EAD dealer or distributor or contact us directly with your requirements.

LMO6138 MIMO Omni Outdoor 4G 5G LTE antenna

The LMO6138 MIMO Omni antenna is a dual polarised outdoor omni-directional antenna for 4G, LTE and 5G frequency bands. Operating from Band 71 from 617 MHz, the LMO6138 antenna works through the cellular bands including the 3400-3800 MHz band. Housed in a durable white ASA/PC radome, this antenna based on the very popular LMO platform and is usually supplied with a robust L-bracket for wall- or pole-mounting. Without the L-bracket, the LMO6138 can be through-hole mounted onto a non-metal surface.

For outdoor deployments, the LMO6138 MIMO omni antenna can be combined with RF195, RF240 or RF400 low loss coaxial cables for installations where the antenna cannot be easily installed close to 4G/5G router or modem.

Offering positive gain on all frequency bands, the LMO6138 is a proven performer despite its compact size and is ideal for Wireless Video/CCTV, leisure marine, wireless broadband access and many other applications.

For the standard LMO antenna for 4G/LTE, please check out the LMO7270 antenna.

For quotations and availability, please contact your local EAD distributor or reseller or contact us for more information.

Customers in the UK can purchase the LMO6318 via the Connex webshop.

LTE-MIMO-MAG 4G LTE MIMO magnetic mount antenna

The LTE-MIMO-Mag is a 4G LTE MIMO magnetic mount antenna. It is designed for fixed and mobile outdoor deployments where a 2-port 4G /LTE is required. Especially for applications, where drilling holes for permanent mount antennas is undesirable, the LTE-MIMO-Mag offers a compact and robust antenna solution.

With a gain of 3 dBi, the LTE-MIMO-Mag offers excellent RF performance and is fed by 2 x 3M cables as standard which are terminated in SMA-Male connectors. Other cable lengths and connectors are possible by request. The antenna base measures 70mm and the height is 100mm which is ideal in applications where long antennas are not  practical,  for example damage from low hanging branches onto vehicle roofs.

For European customers requiring a small quantity of LTE-MIMO-Mag 4G LTE MIMO magnetic antennas, these can be purchased via the Connex webshop.

For wall or pole mount MIMO LTE omni antennas, please check out the LMO7270 antenna.

MIMO LTE antenna platforms are not one size fits all

In considering MIMO LTE antenna solutions for your application not all product offerings are equal. In addition, not all solutions will be suitable for your project.

A supplier with a range of many flavours of MIMO LTE antenna can greatly assist your quest for the best possible wireless deployment. This range should cover as a minimum blade antennas, low profile antennas, magnetic antennas and outdoor omni-directional and directional antennas.

A modular range of products allows the customer the choice to pick the correct product option. Take a low profile puck antenna for example, you may have the option of a MIMO LTE permanent mount puck antenna. This however might not quite meet your requirements, but the option of having such an antenna with an integrated WiFI element or an integrated GNSS element might be more suitable. Notwithstanding those options, it may be that you do not want to drill a hole in the skin of vehicle, cabinet or kiosk and a magnetic mount MIMO LTE antenna is preferable. In this case once again, the options of 2 x LTE, 2 x LTE + GNSS or 2 x LTE + WiFi are welcome to help you meet the requirements of your installation.

In terms outdoor MIMO antennas, a similar principle applies. Directional or omni-directional radiation patterns are important and how to mount the antenna, wall, pole or cabinet mount – a solution needs to be able to address these requirements. Also the possibility to marry these antennas with custom length low loss cables such as RF240 and RF400 rather that being offer a fixed length cable solution at 5M.

EAD is excellently placed to help you with this product options. Many of our antenna solutions are based on modular platforms meaning that we can mix and match radiating elements to deliver exactly the antenna our customers need. In addition, we have access to a broad portfolio of world-class products in our SAS product porfolio which augment and enhance our offerings. For one-off single unit requirements, many of our antennas can be purchased via our sister company’s webshop.

For distributor and reseller pricing and requests, please contact us directly.

Coach II multi-constellation MIMO LTE WiFi antenna

The Coach II multi-constellation GPS L1, L2, L5 MIMO LTE and WiFi antenna has been released by PCTel. Known as the GL125-DLTEMIMO, this antenna is an unrivalled solution for transportation applications requiring multi-constellation GNSS, MIMO LTE and MIMO WiFi within a single antenna radome.

Permanently mounted via a stud underneath, the GL125-DLTEMIMO offers the following features:

  • Global multi-GNSS compatibility: 1150-290 MHz (GPS L2/L5; GALILEO E5A/E5B/E6; GLONASS L2/L3; BEIDOU B2/B3); 1500-615 MHz (GPS L1; GALILEO E1; GLONASS L1; BEIDOU B1/B1-2)
  • Dual port 4G LTE / sub-6 GHz 5G NR
  • 802.11ac WiFi / Bluetooth connectivity
  • AAR compliant for railway applications
  • IP67 rated design

The Coach II multi-constellation antenna is available now, please contact us for more details.





SMP MIMO 4G LTE Directional Panel Antenna

The SMP 4G MIMO antenna is a dual element 4G LTE directional panel antenna. It is designed for wall or pole mount and continuous outdoor use. Offering a gain of 5 dBi on the low band and 8 dBi on the higher bands, the SMP enables MIMO connectivity in areas of weaker network signal.

The SMP MIMO antenna can be supplied with either 2 x 30cm cables and bundled with extension cables or it can be supplied with two 5M white low loss cables as standard. With the supplied brackets, the SMP 4G MIMO antenna can be quickly and easily wall or pole mounted.

The 2 x 5M low loss cable version can be purchased via the Connex website here.

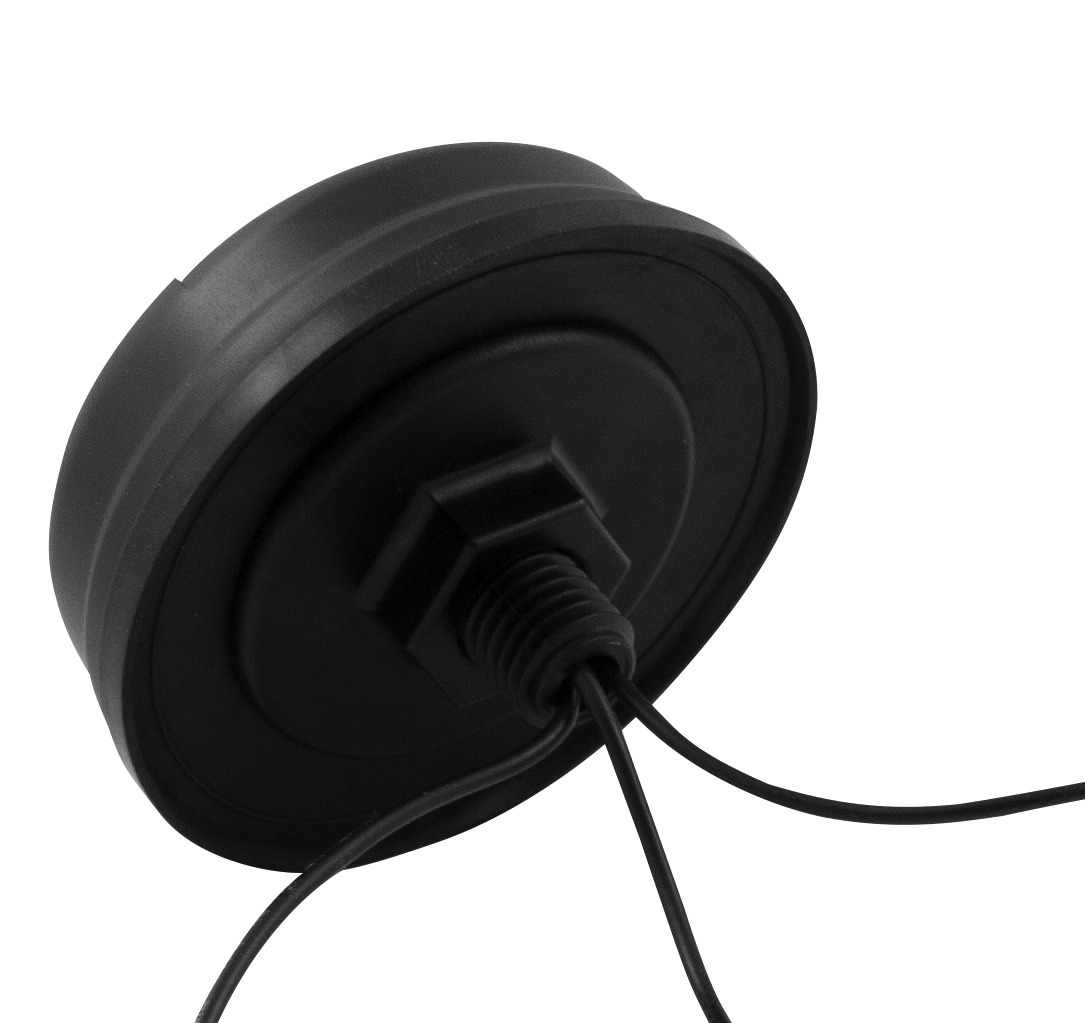

MIMO LTE WiFi multi element puck antenna

EAD has introduced new multi element puck antenna offering MIMO LTE and WiFi based on the popular CPx platform. The C2LW low profile puck antenna incorporates two 700-2700 MHz LTE elements and one WiFi element with a robust housing.

This new C2LW antenna augments the MIMO LTE range of low profile puck antennas to facilitate the addition of WiFi capabilities to a MIMO LTE antenna. This is very useful for transportation, logistical and telematics applications and well as wireless security deployments and charging station systems.

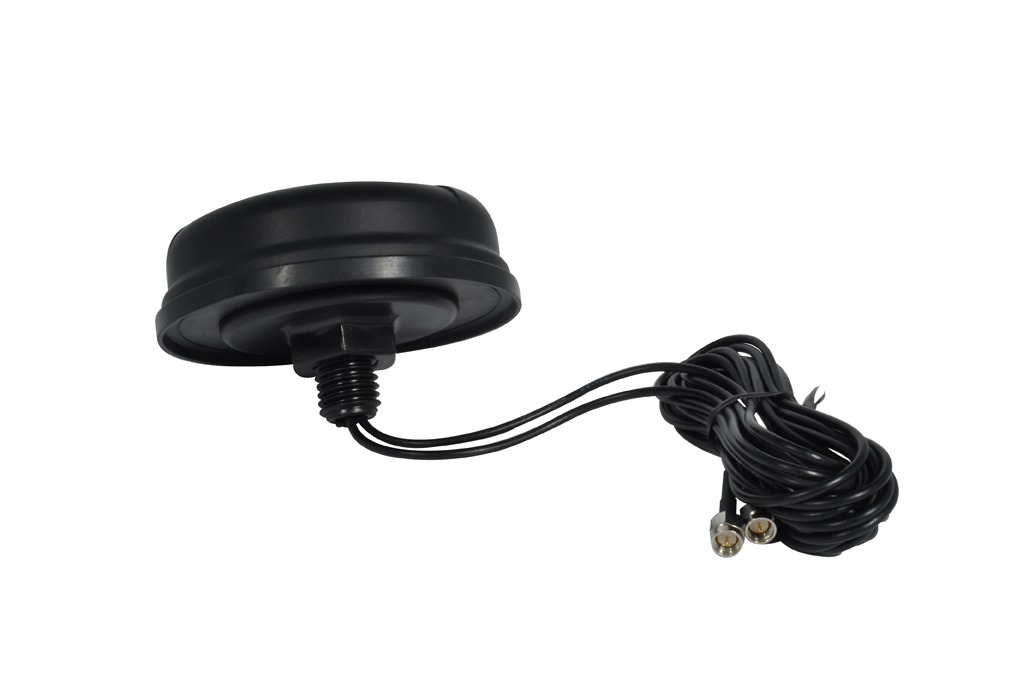

The CMO is a two element 700-2700 MHz low profile puck antenna. For small quantities, the CMO can be purchased via the Connex webshop.

The CMG is a MIMO LTE + GNSS low profile puck antenna.

The CLWG is another multi element puck antenna offering 1 x LTE, 1 x WiFi + GNSS.



C2LW MIMO LTE WiFi antenna low profile puck

The C2LW MIMO LTE WiFi antenna is a low profile,  IP67 rated puck antenna designed for enclosure, roof or flat metal surface mounting. It offers two 700-2700 MHz 4G/LTE antenna elements and one WiFi antenna element with 3 coaxial cable feeds.

Ideal for MIMO LTE + WiFi applications where a single discreet antenna is desirable, the C2LW offers a robust and effective solution for transportation applications such as on vehicle roofs or enclosure/cabinet installations where the antenna can be installed effectively via a 20mm mounting hole. Once mounted the sealing gasket underneath the antenna provides a waterproof, IP67 seal against the mounting surface allowing the antenna to be installed continuously outdoors.

The formal part number for the C2LW is FC2LW35368-SMSMRS-3K assuming 3 x 3M RG174 cables and SMA/SMA on LTE and RP-SMA on WiFi.

For a 2 x LTE puck antenna, please check out the CMO.

For more information, availability and pricing, please contact us.

LPO-D4547 MIMO 450 MHz low profile antenna

The LPO-D4547 MIMO antenna is a low profile dome antenna containing two 450-470 MHz elements. Ideal for fixed and mobile LTE 450 applications requiring MIMO antennas, this antenna is permanently mounted via a mounting stud underneath.

Inside the ASA radome, the two 450-470 MHz antenna elements can be complemented by an optional active GNSS antenna element.

Measuring 140mm in diameter and 80mm in height, the LPO-D4547 MIMO antenna is very compact for a dual element UHF antenna and lends itself well to vehicle and mobile machinery roofs.

The LPO and LPO-4L are other variations of this antenna platform. If required a 2 x 450 MHz + 2 x 700-2700 MHz version can be supplied for specific applications requiring both LTE 450 and LTE 700-2700 MHz.

For a 450-470 MHz MIMO antenna for fixed applications for wall and pole mount or leisure marine purposes, check out the LMO4547.

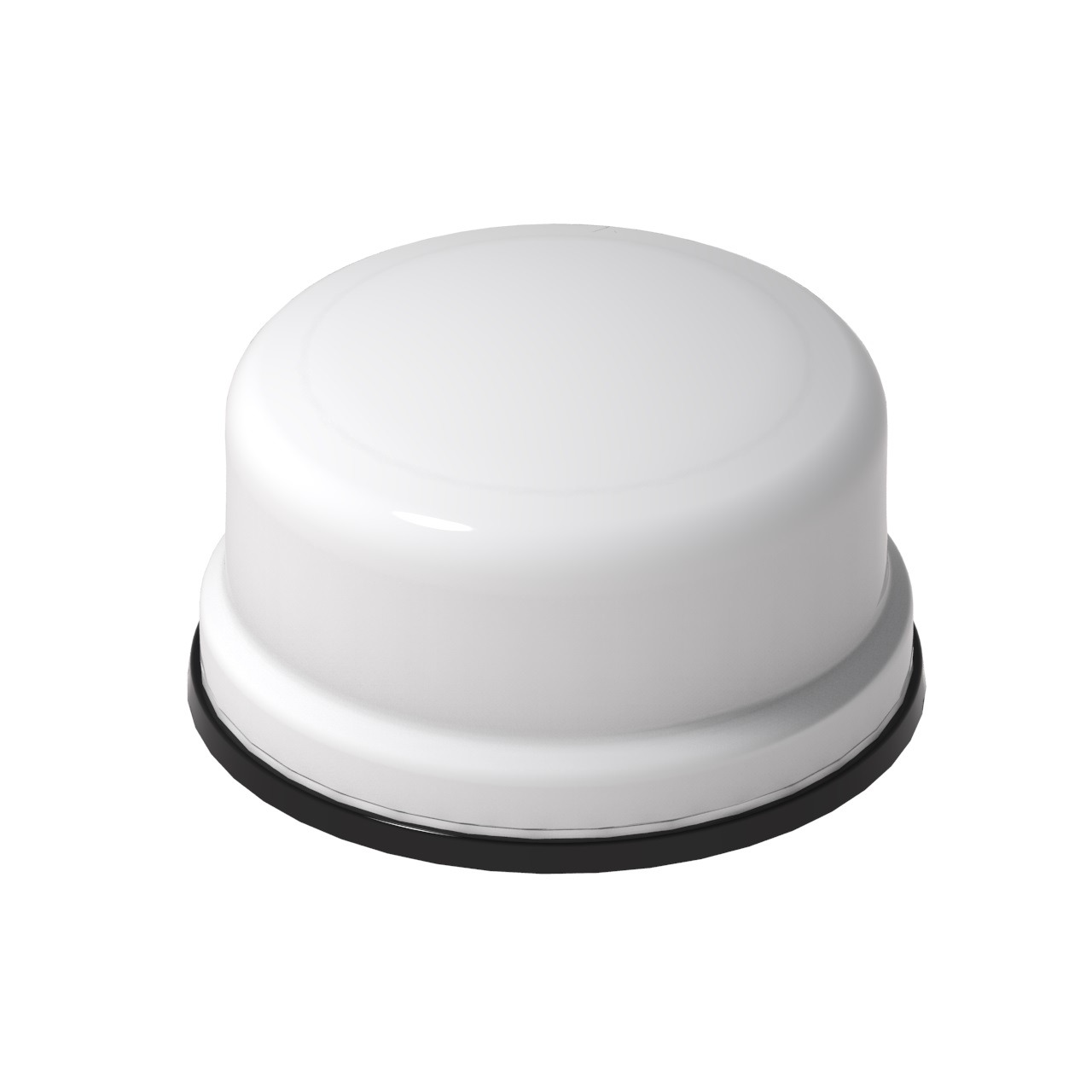

LPO-4L four element MIMO LTE antenna

The LPO-4L is a four element MIMO LTE antenna designed for high speed 4 x 4 MIMO LTE applications where a single antenna with 4 separately fed broadband LTE elements is required. Based on the modular LPO antenna platform, the antenna is robust and designed for permanent mounting onto flat surfaces up to 13mm thickness. Once mounted the antenna is IP67 waterproof and can be used for fixed or mobile applications.

Offering 3/4 dBi gain across the LTE bands, the LPO-4L is an effective performer and with all 4 elements integrated in one unit helps reduce installation times for MIMO LTE deployments.

An option to have an active GNSS antenna inside the LPO-4L is also possible. This offers an active gain of 28 dB and separate SMA cable for the GNSS. This version is called the LPO-4LG.

The LPO-4L four element MIMO LTE  antenna is based on the popular LPO antenna which has 2 x LTE, 2 x WiFi and 1 x GNSS. The standard LPO antenna can be purchased via the Connex Webshop for customers in Europe.

4 x 4 LTE MIMO antenna has arrived at EAD

EAD is pleased to introduce a 4 x 4 LTE MIMO antenna for external fixed and mobile applications. Based on the innovative LPO antenna, this new platform has four broadband 690-2960 MHz elements co-existing inside one low profile radome. An active GPS/GLONASS antenna element can also be configured to reside alongside the 4 LTE elements.

For applications requiring high speed LTE making use of 4 x 4 MIMO functionality, the LPO-4L offers a compact and robust solution with each antenna element fed by a separate cable.

The LPO-4L is one of a number of LPO antenna configurations available including the standard LPO (2 x LTE, 2 WiFi + GNSS) and LPO-D4547 with 2 x 450 MHz elements.

For more information and pricing on the LPO-4L antenna, please contact us or your local EAD distributor.

The LPO-4L antenna can also be used with RF240 low loss cables to extend the installation.

The standard LPO can be purchased from the Connex webshop.

LPO antenna enhanced supporting 450 MHz

The EAD LPO antenna enhanced supporting 450 MHz for LTE 450 applications is now available. With 2 x LTE elements and 2 x WiFi elements, the LPO45727 is ideal for running 700-2700 MHz LTE alongside LTE 450 services.

EAD has used the modular LPO platform to bring this new offering to market. It is a compact design for a multiband antenna solution and is through-hole mount for permanent installation. The LPO has a gasket underneath for an IP67 waterproof deployment and is fed by 4 cables from underneath.

An alternative 450 MHz antenna is our VLP4.

For more information on the LPO45727, please contact us.

If you require a variation of the LPO antenna, please contact us to see if we can develop it for you.

Waterproof LTE MIMO blade antenna for outdoor applications

The MIMO-Blade waterproof LTE MIMO blade antenna is an excellent solution for LTE applications where a MIMO antenna is be mounted outdoors or in an environment where moisture is present. This antenna is housed in an IP67 waterproof, low-pressure moulded and durable material and can be mounted onto non-metal surfaces via suction cups (2 supplied as standard), velcro, cable ties, adhesive tape or adhesive.

Particularly-suited to mobile applications such as trucking and transit where the antenna could be installed exterior to the cab onto or underneath a non-metal surface or covering etc, the MIMO-Blade waterproof LTE MIMO blade antenna offers excellent RF performance in a compact package. Complementing LTE routers and radios with 2 x LTE antenna connectors, this antenna can aid stealth or covert installations where antennas should be functional, but not seen.

Fed by 2 coaxial cables that can be terminated in SMA, CRC9, TS9, FME and other connectors, the MIMO-Blade is a a very flexible solution because it can also neatly address applications such as vending, utilities telemetry, monitoring, CCTV and security.

More information on the MIMO-Blade can be found here.

For customers in Europe, you can purchase low volumes of the MIMO-Blade via the Connex webshop.

EAD also supplies LTE MIMO puck and LTE MIMO Magnetic puck antennas which between them offer a flexible solutions to complement LTE routers and terminals.

Hot Product – MP-2L LTE MIMO magnetic puck

The MP-2L LTE MIMO magnetic puck antenna is a low profile, permanent puck antenna offering two multi-band LTE elements to complement LTE routers with two antenna ports. Ideal for vehicle roofs, metal enclosure and cabinets, the MP-2L antenna is housed in a robust radome and is mounted by way of a high pull strength magnet at the base of the unit. Ideal for applications where drilling a hole for a permanent mount antenna is undesirable.

The antenna is fed by two coaxial cables and cable length and/or connector type can be customised.

The MP-2L is one of a range of puck antennas designed for a wide breadth of fixed and mobile 4G access applications.

A permanent mount version of this antenna called the CMO is also available.

For European customers, small quantities of the MP-2L LTE MIMO magnetic puck antenna and the CMO antenna can be purchased via the Connex webshop.

Four LTE MIMO antennas to get you connected

So you have sourced your LTE router and are looking for an antenna, here are four LTE MIMO antennas that you might want to consider depending on your application.

The antenna choice you make will very much depend on your application and on how/where you want your installation. The four antennas we look at here will cover an outdoor pole or wall mount omni antenna, a permanent mount puck antenna, a magnetic mount puck antenna and internal/external blade antenna. All four of the these antennas offer LTE connectivity in the frequency range 690-960/1710-2690 MHz (basically North American and European LTE bands excluding the 450 MHz LTE band) and all four LTE MIMO antennas are MIMO solutions i.e. they incorporate two LTE antenna elements that operate simultaneously.

Outdoor Wall/Pole Mount MIMO Omni AntennaLMO7270
Housed in an aesthetically pleasing ASA radome, the LMO7270 is designed for both fixed and mobile applications included fixed broadband access, leisure marine, wireless CCTV and security system deployments. Combined with a robust white L-bracket, the LMO antenna is supplied with clamps and mounting for both wall and pole mounting (an option marine mount adapter is also available to connector to 1″ marine mounts).

Offering dual polarisation with one vertically-polarised LTE and one horizontally polarised LTE antenna element, the LMO is an ideal product to combine with 2 antenna port LTE routers and is widely installed across commercial, industrial and leisure marine applications. Available with a combination of low loss jumper cables such as BWL195 or RF400, the LMO7270 is a flexible solution for outdoor antenna installations.

The LMO7270 can be purchased online via the Connex webshop.

Low Profile MIMO Puck AntennaCMO
A durable low profile, permanent mount puck antenna solution is required in a number of applications where the antenna should ideally be covert, discreet and mitigate the risk of damage. The CMO antenna ticks these boxes. Mounted by way of a threaded stud from underneath through a 20mm mounting hole, this antenna offers two LTE elements in a reduced height, reduced diameter package without compromising on performance. Once correctly installed the CMO is waterproof and is IP67 rated.

For small quantity requirements for Europe, the CMO can be purchased via the Connex webshop.

Low Profile MIMO Magnetic Puck AntennaMP-2L
When a magnetic mount antenna is required instead of a permanent mount puck antenna, a very good solution is the MP-2L. Offering two LTE antenna elements housed inside a robust radome, the MP-2L has high-pull strength magnet in its base and it is fed by 2 cables which exit at the side so as not to interfere with installation. This antenna is ideal should drilling a hole in a vehicle skin or enclosure wall is not desirable or should the application demand that the antenna be moved frequently.

LTE MIMO Blade AntennaMIMO-Blade
For an antenna that may not be permanently mounted, one option is to use a blade style antenna to mount onto a window or non-metal surface. The MIMO-Blade is one such antenna that is IP67 rated and so can be mounted inside or outside. Offering two LTE elements, this antenna is fully sealed and waterproof and is supplied with two suction cups as standard, but could also be mounted with adhesive tape, velcro or an adhesive bond such as mastick. The MIMO-Blade can be installed as a covert solution so outwardly there appears to be no antenna installed at all.

The MIMO-Blade can be purchased via the Connex Webshop.

These four LTE MIMO antennas all offer innovative solutions for your LTE installation and combine high quality build along with robust electrical performance. For more information, visit the product pages or the webshop.

For reseller inquiries, please contact us at sales@ead-ltd.com.

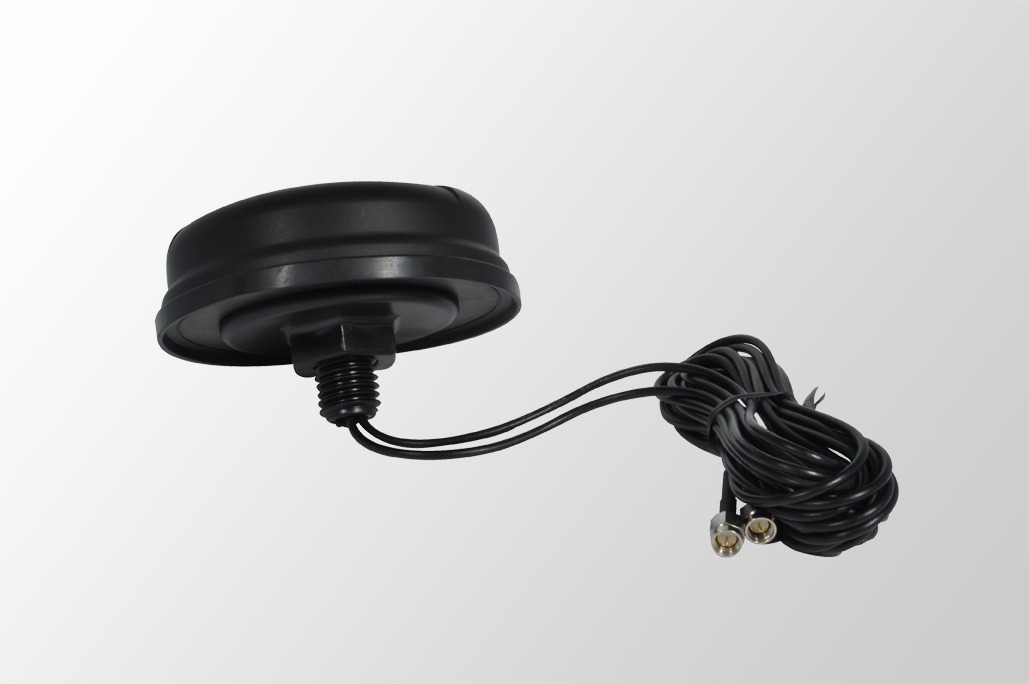

Hot Product – CMO LTE MIMO puck antenna

The CMO LTE MIMO puck antenna is a low profile, permanent puck antenna offering two multi-band LTE elements to complement LTE routers with two antenna ports. Ideal for vehicle roofs, metal enclosure and cabinets, the CMO antenna is housed in a robust radome and is mounted by way of an integral mounting stud at the base of the unit. The antenna is fed by two coaxial cables and cable length and/or connector type can be customised. Once mounted correctly, the CMO is IP67 rated.

The CMO is one of a range of puck antennas designed for a wide breadth of fixed and mobile 4G access applications.

A magnetic version of this antenna called the MP-2L is also available.

For European customers, small quantities of the CMO can be purchased via the Connex webshop.

MP-2L – LTE MIMO Magnetic Puck antenna

The MP-2L is a LTE MIMO Magnetic Puck antenna designed for LTE wireless applications requiring a vehicle roof mounted antenna or a metal surface mount antenna that does not need to permanently mounted. In many applications it is undesirable to drill holes in the roof of vehicle or in metal enclosure or alternatively the antenna may simply need to be moved around. This LTE MIMO magnetic puck antenna addresses this application offering a high pull strength magnetic base under a robust low profile radome.

Two LTE multi-band elements facilitate MIMO functionality and the antenna is fed by cables that exit at the side of the antenna thereby not interfering with the secure mounting of the antenna.

The MP-2L is part of EAD’s new MP (magnetic puck) antenna range with a number magnetic mount puck antenna models available.

The MP-2L is available via your local EAD distributor or reseller. Alternatively customers in Europe, can order via the Connex webshop.

A version of the MP-2L antenna with an integrated active GPS/GLONASS element is also available. This is called the MP-2LG.

Also check out our LTE, WiFi and GPS/GLONASS Mag Puck, the MP-LWG.



Hot Product – CMG dual LTE GNSS antenna

The CMG dual LTE GNSS antenna is a neat solution for MIMO LTE and GNSS applications requiring a robust and low profile puck antenna. Based on EAD’s popular CPx platform, two 690-2700 MHz antenna elements coexist alongside an active GPS/GLONASS antenna.

The CMG is mounted via way of a threaded stud and locking nut underneath and with a robust gasket is IP67 rated when mounted correctly onto a flat surface such as a vehicle roof, street cabinet or kiosk enclosure. The antenna is feed by 3 cables which can be terminated with coaxial connectors per customer requirements including SMA, FME, MMCX, TS9, CRC9.

A version without the GPS/GLONASS element is available – it is called the CMO. It offers 2 x LTE elements and is an ideal complement to LTE routers that have two antenna ports. The CMO can be purchased via the Connex webshop.

CPD – Dual element WiFi low profile puck antenna

The CPD is a dual element WiFi low profile puck antenna with two 2.4 / 5 GHz dual band antenna elements. Designed for WiFi applications requiring two simultaneous connectors, the CPD is based on our modular puck antenna platform. Rated as IP67 once mounted onto an enclosure or vehicle roof, the CPD is discreet and robust and suited to long-term outdoor deployment.

The dual cables can be configured by the customer for length and there is a choice of connectors, typically RP-SMA, RP-TNC or standard SMA.

For a single band 2.4/5 GHz puck antenna, please check out the CPW. For a 1 x WiFi and 1 x LTE, please check out the CLW antenna.

LPO Multiband MIMO antenna announced by EAD

The LPO Multiband MIMO antenna has been announced by EAD. Offering 2 x LTE, 2 x WiFi and one active GPS/GLONASS antenna element, the LPO is a robust and practical solution for bus, truck, transit and vehicle applications where 5 antennas for multiband communications need to be installed.

With excellent RF performance in an enclosure 140mm in diameter and 80mm in height, the LPO is permanently mounted via a threaded stud and locking nut underneath. Gain figures for LTE are 3-4 dBi and 5 dBi for both 2.4 and 5 GHz WiFi bands.

For more information and availability on the LPO antenna, please contact EAD or your local EAD representative.

LPO – 5 Element MIMO LTE WiFi GNSS antenna

The LPO is a 5 Element MIMO LTE WiFi GNSS antenna suitable for vehicle roof permanent mounting for multi-band tracking and telematics applications. Offering 2 x LTE antenna elements, 2 x dual band WiFi elements and 1 x GPS/GLONASS element, the LPO is a robust, permanent mount multiband antenna idea for telematics, transit and fleet applications where multiple antennas are required.

Mounting via one single point, the LPO does not compromise on performance with LTE elements offering 3-4 dBi gain and the WiFi elements offering 5 dBi gain on both bands.

The LPO is 140mm in diameter and 80mm in height with a threaded stud and locking nut underneath. The cables exit through the middle of the mounting stud.

For more information on the LPO, please contact us or your local EAD distributor.

European customers can purchase small quantities of the LPO antenna via the Connex webshop.

For a single LTE, single WiFi and GPS/GLONASS, why not take a look at the CLWG antenna.

LTE MIMO outdoor omni with GNSS introduced by EAD

EAD today introduces a LTE MIMO outdoor omni with GNSS capability called the LMO7270/G.

We have added an active GNSS element  to our LMO7270 antenna as a result enabling positioning functionality alongside LTE connectivity. Housed in a durable radome, the LMO7270/G offers a flexible outdoor antenna solution. The antenna mounts on either a wall/pole bracket or a non-metal enclosure or surface.

Applications for the LMO7270/G include leisure marine vessels and wireless CCTV and security. Both of these deployments have a need for MIMO LTE communications and often require positioning information as well.

For more information and pricing on the LMO7270/G please contact your local EAD reseller or distributor.

LMO7270/G – LTE MIMO GNSS outdoor omni antenna

The LMO7270/G is a LTE MIMO GNSS outdoor omni antenna suitable for LTE access applications requiring a MIMO antenna as well as active GPS/GLONASS functionality. Available either as non-metal enclosure mount or via an optional pole/wall-mount bracket, this antenna is an attractive and effective solution.

Ideal as solution for leisure marine vessels or for wireless security/CCTV systems, the LMO7270/G is complemented by RF240 and RF400 low loss cables enhancing the possibilities for installation.

For a LTE MIMO omni antenna without GNSS, functionality please check out the LMO7270 antenna.

For low loss jumper cables for this antenna, please look carefully at RF240 and RF400 coaxial cables.

CMG – Dual LTE GNSS puck antenna

The CMG antenna is an IP67 dual LTE GNSS puck antenna (2 x LTE + 1 x GPS/GLONASS) designed for mobile as well as fixed LTE applications.

Housed in a very robust package, the CMG is mounted by way of  a threaded mounting stud with the 3 cables exiting through the mounting stud.

Once mounted via a 20mm hole, the CMG is sealed and waterproof and suitable for mounting onto vehicles, industrial machinery and enclosures. The recommended cable length is up to 3M. With two LTE elements, the CMG supports MIMO routers for LTE and offers GPS/GLONASS signal reception for positioning. It is recommended that the CMG is mounted onto a metal surface.

Our CLW and our CLWG platforms offer LTE with WiFI or LTE with WiFi and GNSS respectively.

The formal part number for the CMG is FCMG35343.

LMO4547 – LTE 450 MHz MIMO omni antenna

The LMO4547 is a MIMO (2 port) 450-470 MHz Multiband dual polarised omni-directional antenna. Housed in a durable radome, the LMO4547 450 MHz MIMO omni antenna is suitable for outdoor applications including leisure marine environments to improve reception of LTE 450 MHz signals, especially for wireless broadband, security and CCTV deployments.

The frequencies supported are 450-470 MHz.

The LMO4547 measures approximately 187mm in height and 106mm at the base. It will be available with or without the wall/pole mount bracket and fed by two short pigtail cables, allowing for longer jumper cables to be connected for specific cable runs.

The LMO4547 450 MHZ mimo omni antenna is supplied with a gasket and a moulded nut as standard so the antenna can be installed as a permanent, through-hole mount solution to be mounted onto a non-metal surface or enclosure. Alternatively, the antenna can be ordered to include brackets for wall or pole mount.

LMO7270 – 4G LTE outdoor MIMO omni antenna

The LMO7270 is a 4G LTE outdoor MIMO omni antenna with dual polarised radiating elements. Housed in a durable radome, the LMO7270 antenna is suitable for outdoor applications including leisure marine environments to improve reception of 4G (LTE), 3G and GSM signals, especially for wireless broadband, security and CCTV deployments.

The frequencies supported are 700, 800, 900, 1800, 1900, 2100 and 2600 MHz covering all major 4G, LTE, GSM and 3G frequency bands.

The LMO7270 measures approximately 187mm in height and 106mm at the base. It is available with or without the wall/pole mount bracket and fed by two short pigtail cables, allowing for longer jumper cables such as BWL195, RG240 and RF400 to be connected for specific cable runs.

The LMO7270 antenna is supplied with a gasket and a moulded nut as standard so the antenna can be installed as a permanent, through-hole mount solution to be mounted onto a non-metal surface or enclosure. Alternatively, the antenna can be ordered to include brackets for wall or pole mount. A marine mount adapter for mating to standard 1 inch marine mounts is available.

European customers can order small quantities of the LMO7270  4G LTE outdoor MIMO omni antenna via the Connex webshop.

For a MIMO LTE puck antenna, please take a look at our CMO antenna.

CMO – 4G LTE MIMO puck antenna

The CMO is  4G LTE MIMO puck antenna operating at 4G/LTE multiband frequencies from 690-2700 MHz. A permanent, through-hole mount antenna, the CMO has two 4G/LTE/Multiband elements enabling MIMO operation in discreet, robust housing.

With peak gain ranging across the bands from 1 dBi to 3.5 dBi, the CMO offers an effective solution for mobile 4G and LTE MIMO applications offering support for 3G and GPRS services if required.

The CMO mounts via a threaded stud and is held in place by a robust locking nut. In conjunction with the gasket underneath, a waterproof seal against a flat mounting surface can be formed ensuring that the antenna is suited to continuous outdoor deployment. The CMO antenna operates most effectively if it is mounted onto a metal surface, enclosure or bracket. The mounting hole size is 20mm.

Supplied as standard with 2 x RG174 cables, the antenna can be customised with a number of connectors including SMA, TS9, FME, TNC, CRC9.

The CMG antenna is the CMO, but with an added GPS/GLONASS element.

European customers can purchase the CMO antenna via the Connex webshop.

The formal part number for the CMO is FCMO35303. For example, the CMO with 2M cables would be FCMO35303-SMSM-2K.

MIMO-Blade – 4G LTE MIMO blade antenna

The MIMO-Blade is a 2 x LTE/4G multiband waterproof MIMO blade antenna designed to complement 4G and LTE routers, modems and gateways in fixed and mobile applications. Housed in a robust, durable cover and IP67 rated cover, the MIMO-Blade is a discreet solution for mounting on non-metal surfaces such as vehicle windows, dashboards, inside kiosks or terminals or in locations outside a vehicle or enclosure.

The MIMO-Blade is supplied with two RG174 cables and these can be specified to customer-required length and choices of connector, SMA-Male, FME-Female and TS9 connectors are popular. The MIMO-Blade antenna is fully IP67 compliant.

Applications that this MIMO antenna is used for include vehicle telematics, vending, kiosks and wireless video. The MIMO-Blade is supplied with removable suction cups for mounting and can also be mounted with adhesive tape, velcro, cable ties or plastic screws.

The MIMO-Blade can be purchased by European customers via the Connex webshop.

For a MIMO LTE omni antenna, take a look at the LMO7270 antenna.

For LTE flexible PCB antenna, the L-Flex is an attractive solution.
