Alldisc-S 5G ready low profile dome antenna

The Alldisc-S 5G ready low profile dome from PCTEL is a high performance antenna. It is designed for applications such as Smart Cities, Metering, EV-Charging and IoT installations.

This antenna has exceptional RF performance to help optimize 5G access applications. Robust gain figures coupled with a durable mechanical design mean that it is suitable for a variety of outdoor applications. The 710255 model is permanent mount and has a 2.5M cable and SMA-Male connector.

It is recommended that the AllDisc-S is mounted onto a groundplane.

For a higher performance AllDisc antenna not requiring a groundplane check out the AllDisc.

For more technical information on the AllDisc-S 5G ready antenna, download the specification sheet.

Five innovative 5G antennas for outdoor deployment

Five innovative 5G antennas for outdoor deployments are featured in this short summary. For 5G applications, quality antennas are necessary for optimal reception and network performance. For applications where the use of fixed directional antennas are not possible or undesirable, high performance omni antennas are often required.

A combination of consistent RF performance across the bands and reliable gain figures are a cornerstone of many outdoor antenna applications. Along with robust design, omni antennas should be weatherproof to resist the elements. They should also be compatible with the wide range of 5G routers and radios in the market.

We have selected five innovative 5G antennas that meet the criteria. From world-leading manufacturers, these omni antennas combine excellent mechanical design with robust RF performance.

Innovative Antenna 1 – the AllDisc – a low profile 5G/4G dome antenna encompassing superior RF performance across the 4G/5g bands. The  AllDisc is a permanently mounted via stud at the bottom of the antenna through which the cable exits. It can be enclosure, vehicle roof or bracket mounted. For discreet, low profile applications requiring a single feed 5G antenna, the AllDisc is definitely worth considering.

Innovative Antenna 2 – the Medallion II – a low profile 5G NR MIMO antenna a permanently mounted rooftop, enclosure or kiosk antenna. It is housed in a white rectangular radome. Fed by two SMA cables for MIMO 5G operation, the Medallion II also has a GNSS option for positioning, ideal for mobile applications.

Innovative Antenna 3 – the RO600/71N –  a compact 5G NR outdoor omni antenna for pole/wall-mount. Housed in an UV-rated radome, this antenna offers exceptional RF figures across the bands from 617-7125 MHz. Ideal for 5G access applications such as smart metering, utilities and IoT devices, the antenna is comes with bracketry and is terminated in a N-Female connector. This antenna can be purchased from our sister company’s webshop here.

Innovative Antenna 4 – the MHO5GFRI – a compact outdoor omni antenna.With options for integrated N-Female or N-Male connectors, this antenna can be radio or pole-mounted. Measuring less than 27cm in height, this antenna is truly discreet for an outdoor omni and ideal for IoT and access applications where visibility is a critical consideration for deployment.

Innovative Antenna 5 – BMLPV5000 – a low profile 5G NR antenna with options for magnetic or permanent mounting. This antenna offers truly consistent wideband performance when mounted onto a groundplane. It is very robust and durable and mounts via a NMO connection to your choice of mount. Ideal for mobile applications and IoT deployments where a truly tough antenna is required.

These are five innovative 5G antennas that offer excellent RF performance and each one address a slightly different antenna requirement. In our portfolio, we have other 5G antenna such as the LMO6138 MIMO or the LPT600-71DMN direct mount antenna which address MIMO outdoor and low profile permanent mount applications respectively.  For more information on the antennas including pricing and availability, please contact us.

Some of the antennas can be purchased in low volume via the Connex webshop.

FTR6072 wideband blade antenna now available

The FTR6072 wideband blade antenna is designed for direct mounting onto 5G routers and devices. Housed in a black, nylon sheath, the FTR6072 mounts directly via a SMA-Male connector.

This antenna covers frequencies from 600 MHz to 7200 MHz with consistent gain across the bands. This allows it to operate at most 5G frequencies worldwide. The antenna has an articulating SMA connector and locks in either a vertical or right-angle position. With an overall length (when vertically extended) of 231mm and maximum width of 22.6mm, the FTR6072 wideband 5G antenna is a compact solution for 5G routers.

The FTR6072 wideband blade antenna is in stock now for immediate shipment.

HX-CH7018A Embedded Helix Antenna with L-Band

The HX-CH7018A Embedded Helix antenna from Harxon is designed for high precision positioning and offers superior satellite signal tracking, including GPS, GLONASS, GALILEO, and Beidou as well as L-Band correction service. Its RTK level positioning accuracy makes it ideal to be integrated into application as surveying and mapping, and various UAVs operations.

The HX-CH7018A features multi-point feeding technology that ensures high phase center stability. Meanwhile, adopting advanced patented D-QHA technology and covering a wider frequency band, the HX-CH7018A achieves extraordinary 2.8dBi gain for reliable and consistent performance.

It also optimizes circuit layout and features a robust pre-filtered LNA that features excellent out-of-band interference rejection performance and minimizes possible unwanted electromagnetic interference.

The HX-CH7018A Embedded Helix antenna weighs only 8 with compact dimensions of D44*H28mm, making it ideal to be integrated into UAV applications.

Check out the HX-CH7069A for a compact helix in a radome.

HX-CT3602A Timing Antenna GPS GLONASS L1

The HX-CT3602A timing antenna from Harxon is especially designed for timing, mobile, precision and military applications, covering the GPS, GLONASS and GALILEO signal reception. It can provide truly circular response over the antenna’s entire bandwidth thereby producing superior multipath signal rejection.

This antenna features a highly circular wideband patch element with a high-performance Low Noise Amplifier. This configuration provides excellent axial ratio that is constant across the full frequency band. Its filtering design allows for wideband coverage while achieving superior out of band rejection and high gain 28dB performance. The small, conical design minimizes perching and provides runoff.

The HX-CT3602A timing antenna is housed in a permanent mount industrial-grade weatherproof enclosure and terminated in a TNC-Female connector.

For more information download the datasheet or contact us for pricing and availability.

Check out the HX-CH7609A, a compact helix antenna for UAV applications.

FTR6072 wideband 5G terminal blade antenna

The FTR6072 wideband 5G terminal blade antenna is designed for direct mounting onto 5G routers and devices. Housed in a black, nylon sheath, the FTR6072 mounts directly via a SMA-Male connector. Based on our proven WTR7270 mechanical design, the FTR6072 is a very neat solution for portable and fixed devices.

This antenna supports frequencies from 600 MHz to 7200 MHz with consistent gain across the bands. This allows it to operate at most 5G frequencies worldwide. The antenna has an articulating SMA connector and locks in either a vertical or right-angle position. With an overall length (when vertically extended) of 231mm and maximum width of 22.6mm, the FTR6072 wideband 5G antenna is a compact solution for 5G routers.

For pricing and lead times, please contact us or your local EAD distributor.

CLO 4G/5G low profile puck antenna

The CLO 4G/5G low profile puck antenna is a permanent mount antenna, housed in a tough and durable enclosure. The antenna is a screw-mount antenna requiring a 20mm mounting hole. The cable exit is on the underside of the antenna and once mounted is totally enclosed, watertight to IP67 and secure.

This low profile antenna is secured in place by a nut that is tightened from underneath. The CLO is ideal 4G/5G fixed and mobile applications such as metering, security and telematics applications where a discreet antenna is required, but performance cannot be compromised. The CLO should be mounted onto a metal surface.

The formal part code for this antenna is FCLO35358-SM-2K for the model with a 2M cable and SMA-Male connector.

The CLO 4G/5G low profile puck antenna is part of a range of low profile puck antennas including the CMO 4G/LTE MIMO low profile puck antenna.

Platch LTE 4G compact low profile compact antenna

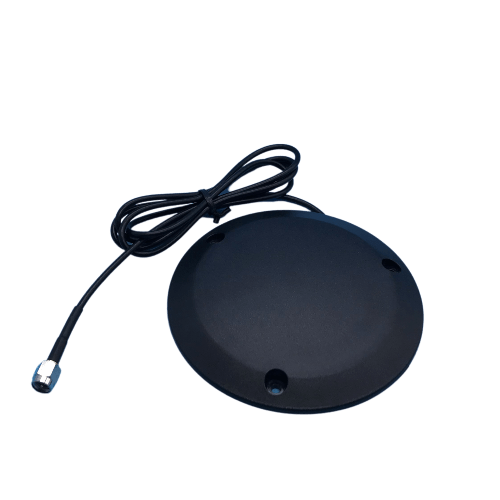

The Platch LTE 4G compact low profile antenna is designed for height-critical applications. It is ideal for pit lid, ground-level and discreet LTE/4G applications where a reduced-height antenna is required.

Measuring a shade over 100mm in diameter and just 14mm in height, the Platch LTE antenna is truly compact. It is fed by a RG174 cable  and SMA-Male connector exiting from the underside and is mounted via 3 mounting holes. The antenna is incredibly robust and is fully sealed and waterproof and suitable for installation in harsh environments. It offers a peak gain of 2.88 dBi.

Suitable for low-level applications, meter-pit lids, parking, datalogging and utilities applications, it is ideally mounted onto a groundplane (antenna data measured on a 500x500mm groundplane). The part number of the Platch antenna with a 1M cable and SMA-Male connector is PLA-7270-SM-1K.

The Platch LTE 4G compact low profile antenna is one of a range Platch low profile products. Check out the 868 MHz version of the Platch antenna.

Platch 868 MHz compact low profile antenna

The Platch 868 MHz compact low profile antenna is designed for height-critical applications. It is ideal for pit lid, ground-level and discreet applications where a reduced-height antenna is required.

Measuring a shade over 100mm in diameter and just 14mm in height, the Platch 868 antenna is truly compact. It is fed by a RG174 cable  and SMA-Male connector exiting from the underside and is mounted via 3 mounting holes. The antenna is incredibly robust and is fully sealed and waterproof and suitable for installation in harsh environments. It offers a peak gain of 3 dBi.

Suitable for low-level applications, meter-pit lids, parking, datalogging and utilities applications, it is ideally mounted onto a groundplane.

The Platch 868 MHz compact low profile antenna is one of a range Platch low profile products.

CVX600A Ruggedized Millimeter Accuracy GNSS Antenna

The CVX600A Ruggedized Millimeter Accuracy antenna from Harxon is designed with a ruggedized enclosure that allows the antenna to be used in high shock and vibration environments. HX-CVX600A provides millimeter level accuracy with the advanced filtering capabilities and robust signal tracking. It is ideal for all surveying and I-construction machining applications.

The HX-CVX600A has a compact design, and is built into a rugged IP69K rating housing with and independent aerodynamic enclosure. A standard TNC female connector with anti-collision cap design ensures optimal reliability in challenging environments.

For more information on this antenna for your application, download the datasheet or please contact us.

Also check out the lightweight multi-constellation helix antenna, the HX-CH6601A.



HX-CHX602A GNSS foldable multi-constellation helix antenna

The HX-CHX602A GNSS foldable antenna from Harxon is a multi-constellation full frequency high gain geodetic surveying antenna. This small form factor antenna employs a foldable design that allows a maximum of 90 degree bending angle for superior GNSS signal availability while integrated with surveying terminals, pads and consoles in the field. Its high sensitivity, low power consumption, small dimensions, flexible angle of signal reception make it a great match for geodetic surveying applications.

This antenna offers full support for reliable and consistent satellite signals tracking, including GPS, GLONASS, Galileo and BeiDou, as well as L-Band. It also exhibits a very stable phase center by adopting multipoint feeding technology, exceptional low elevation satellite tracking with symmetric radiation patterns, high gain with ultralow signal loss, as well as outstanding wide-angle circular polarization (WACP) ensures remarkable positioning accuracy.

The HX-CHX602A GNSS foldable antenna adopts a rugged small form factor foldable design that allows a maximum of 90 degree bending angle, providing the most flexible GNSS signal reception angle for robust signal availability of the surveying control terminals.

For a very small compact multi-constellation antenna, check out the Harxon HX-CH7609A.



HX-CHX600A Multi-constellation lightweight helix antenna

The HX-CHX600A Multi-constellation lightweight helix antenna from Harxon is designed for high precision positioning and offers superior satellite signal tracking, including GPS, GLONASS, GALILEO and Beidou as well as L-Band correction service. Its RTK level positioning accuracy makes it ideal to be integrated into application as surveying and mapping, and various UAVs operations.

Harxon’s D-QHA technology ensures more stable performance of wide-angle circular polarization (WACP), and smaller antenna phase center deviation (PCV), which ensures a more precise positioning accuracy.

Strong anti-interference performance through a LNA that features an excellent out-of-band rejection performance, which can suppress the electromagnetic interference, providing stability and reliability of GNSS signals.

The compact dimensions of the HX-CHX600A Multi-constellation lightweight helix antenna of 40×82.6mm (dxh) do not compromise it superior signal tracking capabilities.



HX-CH7609A Helix Antenna for UAVs and Surveying

The HX-CH7609A helix antenna from Harxon is a high performance GNSS antenna designed for high precision positioning applications and offers superior satellite signal tracking, including GPS, GLONASS, GALILEO, BeiDou, as well as L-Band correction service. Ideal for applications as surveying and mapping, and various UAV deployments.

Despite weighing only 30.5g  and with compact dimensions of 43.6×40.8mm (dxh), the HX-CH7609A helix antenna offers a high gain and high accuracy solution and is an easy solution to integrate into many precision positioning projects.

The HX-CH7609A adopts advanced circuit layout and a robust pre-filtered LNA that features an excellent out-of-band interference rejection performance and inhibits possible unwanted electromagnetic interference.



5G 4G outdoor antennas for all-weather installations

If you need 5G 4G outdoor antennas for deployments all year round, here are a few quality antennas to consider.

AllDisc 5G – a high gain, low profile dome antenna for permanent mounting. A best-in-class antenna offering 5G and 4G support for mounting on a flat surface (or with an option wall bracket). The AllDisc is fully weatherproof and robust offering superb gain figures across the bands, ideal for sites on the fringes of the network where a tough, discreet antenna is required such as security, CCTV and site applications.

MHO5GFR1 – a fully wideband 5G/4G  antenna. This omni is a high-performance omnidirectional antenna series is designed to cover frequencies from 617 – 5925 MHz for broadband access applications. With its integral N Female and N Male connector options at the base, this antenna can be directly mounted on the radio equipment or pole mounted depending on which model you order. This antenna is great for access applications requiring a compact, but consistently performing outdoor omni.

BMLPV5000 – an extremely rugged 5G antenna for mobile applications such as utility vehicles, transportation as well as fixed deployments in harsh environments. This antenna is ground-plane dependent and should be used with either a magnetic or permanent mount terminated in a cable and connector of your choice. Durable to withstand impacts and all the weather can throw at it, this antenna is especially neat for telematics and ITS installations.

VerStack 5G – a high performance MIMO 5G +GNSS antenna ideal for private 5G networks and small cell applications. A design based on vertically stacked 5G and GNSS elements, its ruggedized materials provide maximum durability, and performance for mobile data and video communications.

These 5G 4G outdoor antennas offer unrivaled performance and build quality from world-leading antenna manufacturer PCTEL.

Please feel free to contact us to discuss how to integrate these antennas in your 5G outdoor deployment alongside low loss coaxial cables, surge protectors and mounting accessories.

MiniBlade wideband compact WiFi blade antenna

The MiniBlade wideband compact WiFi blade antenna from Smarteq is designed to cover 2.4 GHz to 6 GHz frequencies. It is an adhesive mounted omni-directional ultra-wideband antenna. Ideal for applications such as indoor Wi-Fi coverage, internet onboard buses, EV-chargers,  Wi-Fi zones, and Wi-Fi supported devices. Its superior RF performance enables high connectivity and throughput. It can be easily installed on on glass or other non-conductive surface.

With compact dimensions of 55.6 x 23.6 x 6.6mm, the MiniBlade offers gain ranging from 3.8 dBi at 2400 MHz to 7 dBi in the 5 GHz band. It’s flexible and slim construction makes mounting straightforward, even on curved surfaces.

For quotes on the MiniBlade antenna, please contact us.

For online purchases, the MiniBlade wideband compact WiFi blade antenna can be ordered via the Connex webshop for customers in the UK.

LPT600-71DMN 5G/4G Direct Mount Omni Antenna

The LPT600-71DMN 5G/4G Direct Mount antenna is a 5G FR1, Low Profile Transit, M2M, IOT antenna with exceptional performance, covering 617-960/1710-7125 MHz with 2dBi and 5.5dBi gain respectively. It is cost-effectively designed without compromising the antenna’s performance or mechanical robustness. The performance across the whole frequency range makes the LPT600/71DMN suitable across a variety of applications including Cellular, 5G/C-Band, Wi-Fi, or Wi-Fi 6E applications.

Measuring just 96mm in height with a 41mm diameter, the antenna is terminated in a N-Female connector for permanent mount applications and should be mounted onto a groundplane (metal surface). A 15.9mm mounting hole is required.

The key features are as follows:

  • Wideband 5G FR1 Cellular, Wi-Fi, & Wi-Fi 6E Coverage
  • High performance, high efficiency single element design
  • Omnidirectional pattern
  • Mechanically robust, IP67 rated for outdoor and indoor use
  • Low profile, aesthetically pleasing package
  • Standard N Jack Mounting solution for both ceiling mount and surface mount installs

For pricing and availability on the LPT600-71DMN 5G/4G Direct Mount antenna, please contact us.

Check out the RO600-71NFKIT for a outdoor 5G/4G omni antenna.

RO600/71NFKIT 5G/4G Radome Omni Dipole Antenna

The RO600/71NFKIT 5G/4G Radome Omni Antenna from Pulse is ideal for many applications including remote monitoring, private cellular networks & IOT applications. Boasting average peak gains across the bands of 617-960 MHz 2.5dBi, 1450-4200 MHz 4.0dBi and  4400-7125 MHz 4.3dBi, this antenna offers optimal performance over a wide frequency range.

Fabricated using a rugged design, with a omni-directional radiation pattern and DC-grounded element, the antenna includes Band 71 617-698MHz) and CBRS Bands 42 and 48 (3400-3700MHz). Designed to offer best in class reliability and throughput, the RO600/71NFKIT will allow users to take advantage of the high bandwidth, low-latency capabilities 5G offers.

Please contact us for pricing and lead times for the RO600/71NFKIT 5G/4G Radome Omni.

For a low profile, mobile 5G antenna check out the LP600-71DMN antenna.

BMLPV5000 5G NR (FR1) WiFi 6E, Low Profile Antenna

The BMLPV5000 5G NR (FR1) WiFi 6E, Low Profile Antenna antenna supports the high speed requirements of complex RF communication systems used for Intelligent Transportation Systems (ITS), and IIoT applications.
This antenna supports the world’s leading 5G NR or Wi-Fi6e devices supporting frequencies  from 600 MHz to 7.1 GHz. It features an attractive, compact housing that makes the antenna ideal for indoor or outdoor applications requiring a discreet solution.

PCTEL’s high efficiency permanent mounts are recommended for most efficient performance. There are both magnetic mount and permanent mount options available.

The key features of the BMLPV5000 5G NR (FR1) WiFi 6E antenna are:

  • Attractive, low-profile and robust design
  • Multiple band coverage with no tuning required
  • Can be used for discreet mobile and fixed base applications
  • Environmentally tested to MIL-STD-810G
  • N female termination (permanent mount) option available



MHO5GFR1 5G Outdoor Omni Antenna

The MHO5GFR1 5G Outdoor Omni is a high-performance omnidirectional antenna series designed to cover frequencies from 617 – 5925 MHz for broadband access applications. With its integral N Female and N Male connector options at the base, this antenna can be directly mounted on the radio equipment or pole mounted as required.

Measuring less than 27cm in overall height and with a diameter of just 2.86cm, the antenna is housed in a white UV-stable ASA sheath and is waterproofed to IP67.

With gain approximately 2 dBi in the low band and up to 5.8 dBi in the higher bands, the MHO5GFR1 5G Outdoor Omni is ideal for broadband access applications and great complement to 5G routers.





WCO-FLY 868 915 MHz waterproof compact omni antenna

The WCO-FLY 868 915 MHz antenna is a permanent mount antenna with an integrated IPEX (U.FL) cable. Based on our WCO (waterproof compact omni) antenna platform, this model can be supplied at either 868 MHz or 915 MHz frequency bands (other frequencies may be possible). Mounting via a threaded stud with o-ring to provide a watertight seal, the antenna can mate to radios/modules that have a U.FL antenna connector.

The antenna is housed in an UV-resistant sheath which is robustly attached is a modified N-type connector based facilitating the threaded stud mount.

For availability and pricing for the WCO-FLY 868 915 MHz antenna, please contact us.



Improved LPO6938-4P-WB antenna now released

EAD is pleased to introduce an improved LPO6938-4P-WB antenna based on a new UV-resistant ASA bracket. With possibilities for wall, pole and rail, mounting, this antenna is designed to complement 5G routers.

Our new ASA bracket offers more mounting options for external applications such as security, wireless CCTV, leisure marine and network resilience. With solid gain figures across the bands, the LPO6938 offers robust performance in a reduced height form factor. We have also added a strain relief plug where the cables exit the antenna for durability and to protect against moisture ingress.

For quotes and lead times for our improved LPO6938-4P-WB antenna, please contact us or your local EAD distributor.

Button WiFi6 compact low profile antenna

The Button WiFi6 compact antenna is a full spectrum WiFi low profile antenna designed for permanent mounting onto any flat surface. Mounting via a 14mm threaded stud, this antenna offers wideband WiFi connectivty in a robust, but small form factor package making it ideal for indoor and outdoor applications such as telemetry, routers and gateways, kiosks and smart terminals.

With consistent gain figures across the bands and IP67 rated when mounted correctly on a flat surface, the Button WiFi6 compact antenna is a neat solution for outdoor cabinet and enclosure installations where an external antenna is required, but antenna size has to be kept to a minimum. The antenna is fed by a 1M RG174 cable as standard and terminated in either a RP-SMA or SMA connector.

For a LTE version of the this antenna check out the Button LTE.

WFS5 WiFi6 WiFi6E terminal mount antenna

The WFS5 WiFi6 WiFi6E terminal mount antenna is a higher gain router/modem mount antenna for WiFi applications. Housed in a sleek sheath, the WFS5 antenna offers robust RF performance across the entire frequency range. With omni-directional gain across all bands, this antenna ensures consistent reception and transmission making it ideal for a variery of WiFi applications.

A higher performance model than our WFS3 antenna, the WFS5 offers 3 dBi gain on the lower bands and 4/5 dBi gain on the upper bands whilst only measuring 203.2mm in overall length. The antenna is groundplane independent and does not require mounting on a groundplane to radiate effectively.

The WFS5 WiFi6 WiFi6E is ideal for a range of wireless LAN applications where a terminal-mounted antenna is required.

For a more compact WiFi6 WiFi6E antenna model, check out our WFS3 antenna which offers consistent RF performance in a smaller form factor.

WFS3 WiFi6 WiFi6E terminal mount antenna

The WFS3 WiFi6 WiFi6E terminal mount antenna is a router/modem mount antenna for WiFi applications. Housed in a sleek sheath, the WFS3 antenna offers robust RF performance across the entire frequency range. With omnidirectional gain across all bands, this antenna ensures consistent reception and transmission making it ideal for a variery of WiFi applications.

A compact model, the WFS3 offers 2 dBi gain on the lower bands and 4 dBi gain on the upper bands whilst only measuring 123.7mm in overall length. The antenna is groundplane independent and does not require mounting on a groundplane to radiate effectively.

The WFS3 WiFi6 WiFi6E is ideal for a range of wireless LAN applications where a terminal-mounted antenna is required.

For a higher gain model, check out our WFS5 antenna which offers higher gain on both lower and upper bands.

Medallion II MIMO 5G FR1 multiband antenna

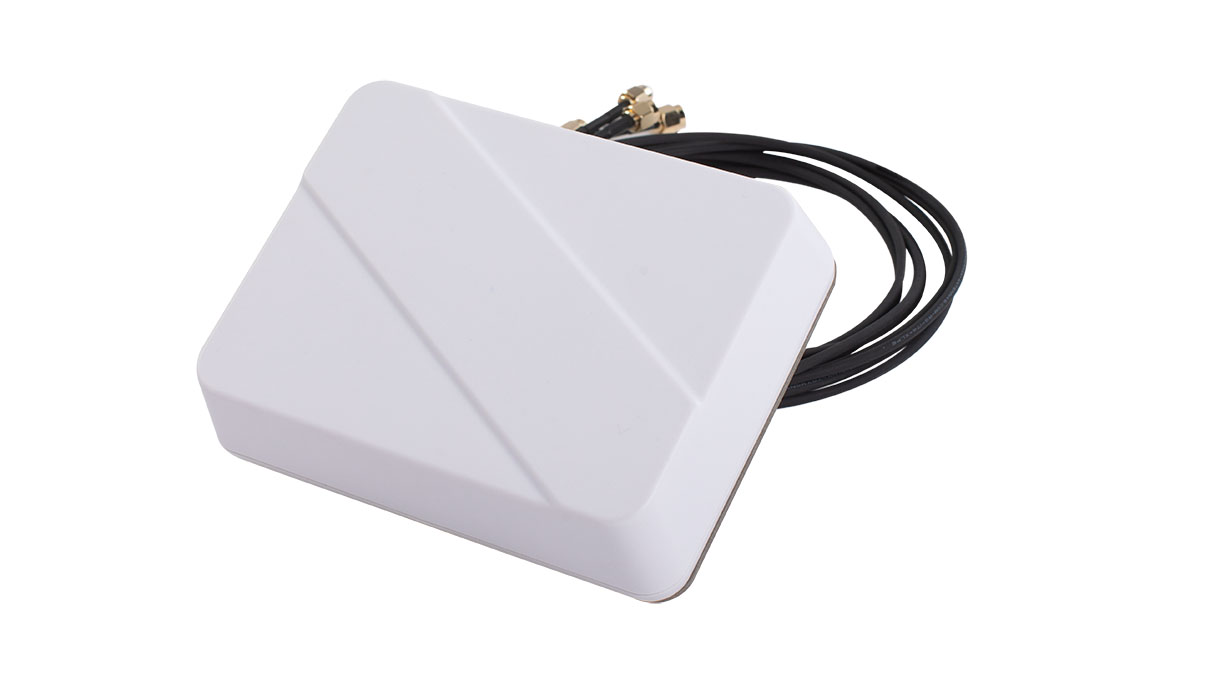

The Medallion II MIMO 5G FR1 multiband antenna from PCTEL is an ideal solution for industrial IoT applications. This GNSS multiband antenna includes two 5G FR1 ready ports, and an optional dual band 2.4/5 GHz port for WiFi coverage. Its proprietary, built-in GNSS technology features superior out-of-band rejection filtering for optimal operation with industrial IoT wireless networks. This antenna platform is housed in a rugged, UV-stable housing, available in black or white color options.

Key features include:

  • Dual cellular ports for 5G FR1 networks, including CBRS bands
  • Low Profile 1-1/3-inch-tall housing for permanent mount installations with limited overhead clearance
  • GNSS compatibility, covering global systems: (GPS L1; GALILEO E1; GLONASS L1; QZSS L1; BEIDOU B1)
  • Optional dual band 2.4/5 GHz WiFi port
  • Suitable for vehicular rooftop outdoor or indoor applications
  • Durable, UV-stable white or black radome options
  • Ingress protection: IPX7 rating

The GLLPDLTE-W version of the Medallion II MIMO 5G FR1 is a stock part. Please contact us for pricing.

Check out the Trooper II for a 6 port multi-element low profile antenna.

6.2 dBi 868 MHz Omni Outdoor Fibreglass antenna

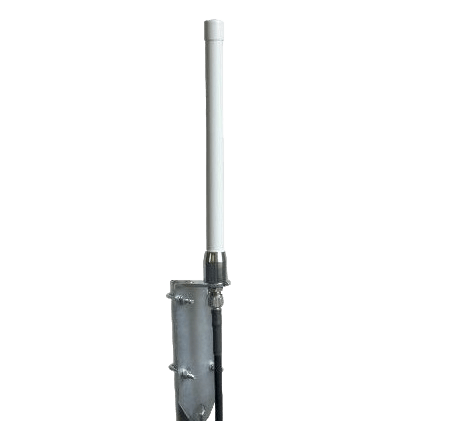

The 6.2 dBi 868 MHz Omni outdoor omni-directional antenna from EAD is centre-tuned and optimised at 868 MHz. Ideal for Helium applications, this antenna is terminated in a N-Female connector allowing it to be connected to a Helium hotspot via custom RP-SMA Plug (Male) cable. For other LoRA, SigFox and LP-WAN applications, the OMNI-868-62 offers consistent and durable mechanical and electrical performance.

Measuring 77cm in overall length (excluding the bracket), the OMNI-868-62-NF is a quality antenna manufactured for permanent outdoor installation. With a fibreglass tube and a robust mounting bracket (including U-bolts for 35-42mm mast diameter) allowing both pole and wall mounting, this antenna is designed for long-term outdoor deployment without degradation.

Check out our DMO8684 for a 4.3 dBi optimsed 868 MHz Omni Antenna.

Specifications:

Centre Frequency:         868 MHz
VSWR:               <1.5:1
Polarization:       Linear – Vertical
Gain:                  6.2 dBi
Impedance:        50 Ohm
Radiation (H-plane):   360 degrees omni-directional
Radiation (e-plane Beamwidth @ -3dB:    22 degrees
Length:               77cm
Connector:        N-Female
Mounting:          Pole / Wall Mount (supplied with U-bolts) – Mast diameter 35-42mm



CFO Compact Fibreglass Omni Outdoor Antenna

The CFO Compact Fibreglass Omni Outdoor antenna is a very compact solution providing 4G/5G access. Based around 145mm long Fibregalss sheath, the CFO offers robust performance in a small form-factor.

Operating over a wideband from 617 to 7125 MHz, the CFO covers the majority of 4G/5G frequencies worldwide. It is supplied with a stainless steel L-bracket for wall-mounting and is terminated in a N-Female connector. VSWR across the bands is less than 3:1.

Ideal for 4G/5G access applications, including security, CCTV, telemetry systems, kiosks, vending and industrial cellular deployments, it’s compact size offers a discreet solution whilst the materials use facilitate long-term use without degradation.

Combine the CFO compact fibreglass omni antenna with N-Male terminated low loss coaxial cables to customise your installation.

For a high gain 4G antenna, check out our FGO antenna.

For customers in the UK, low quantities of our 4G/5G antennas can be purchased at www.connextech.co.uk.

Maverik 4 Port MIMO 5G/4G low profile antenna

The Maverik 4 Port MIMO is a 5G/4G low profile antenna designed for mounting onto a metal surface. Offering 4 x 700-3800 MHz ports, this antenna is compact with a height of under 35mm. Ideal for transportation/telematics, security panels, wireless CCTV and signage/information systems, the Maverik antenna is permanently mounted and suitable for indoor or outdoor deployments.

With rectangular footprint in dimensions of approximately 202 x 107mm, the Maverik 4 Port MIMO antennas is well suited to installation on vehicles as well as cabinets, kiosks and other wireless enclosures. Each antenna element is fed by one cable, the cable length and connector type are customizable.

For a two port MIMO 4G antenna, check out the CMO antenna.

Helium Outdoor Antennas FAQ Installation & Deployment

Helium Outdoor Antennas FAQ

  1. What is an omni-directional antenna?
    • a omni-directional antenna is an antenna that radiates in every direction.
  2. What characteristics does a good helium omni antenna need?
    • A good outdoor helium omni antenna needs to combine effective RF performance with excellent build quality. Reliable gain figures are important for planning your deployment and the use of quality materials such as fibreglass tubes to ensure longevity when exposed long term to UV from sunlight and the weather.
  3. What mounting options are possible?
    • A good helium antenna will offer multiple mounting possibilities. Limiting the mounting to only pole mount or only wall-mount is restrictive therefore an antenna that offers both mounting options is preferred.
  4. Is the choice of RF cable important for Helium deployments?
    • The selection of quality RF cable is important for Helium antenna deployments especially for longer cable runs where it is critical to minimize signal losses (attenuation) over the length of the cable. For 10M or 20M cables, look towards 240 or 400 type cables respectively to mitigate signal losses.
  5. Is a surge arrestor required for Helium installs?
    • This is really a question for the installer. In the UK lightning strikes are very rare, so typically surge protectors are not used as the chance of a strike is so low. However, a “belt-and-braces” approach might be considered where a surge protector is used.
  6. What the best advice for choosing a Helium outdoor antenna?
    • Use a quality antenna from a reputable manufacturer where you can be sure that the specifications published match the performance of the antenna. Ensuring that the antenna is made of quality materials means that the antenna is unlikely to fail with a few weeks of installation. Select high quality low loss cables that mean you do not lose all the gain offered by the antenna over the cable run.

We hope this short Helium Outdoor Antennas FAQ has been useful. Check out the Helium antennas at our web shop.

QAD – Six Port 5G antenna Trooper II from PCTEL introduced

The Trooper II Six Port 5G antenna from PCTEL has been introduced. This antenna is compatible with the leading 5G OEM routers, featuring six high-efficiency 5G FR1 antenna elements that deliver fast and reliable connectivity for voice, video, and data transmissions. It also contains PCTEL’s proprietary high-rejection, multi-constellation GNSS L1 L2 L5technology for high precision location tracking

With excellent RF performance, low profile form factor and slim footprint, it is ideal for industrial IoT, intelligent transportation, public safety and enterprise applications.

Check out the Trooper II product page here.

For more information on the Trooper II Six Port 5G antenna, pricing and availability, please contact us.

Trooper II 6 Port 5G slim permanent outdoor antenna

The Trooper II 6 Port 5G slim permanent mount outdoor antenna is manufactured by PCTEL. This antenna is compatible with the leading 5G routers, featuring six high-efficiency 5G FR1 elements that deliver fast and reliable connectivity. It is mounted via a metal 1-inch stud mount with slotted jam nut.

Offering a low profile form-factor with narrow footprint, the Trooper II cabinet mount antenna is housed in an attractive, UV stable radome  and rated to IP67 for maximum protection against ingress when correctly mounted.

A proprietary high-rejection, multi-constellation GNSS L1 L2 L5 technology is also included for high precision location tracking.

For more information on the Trooper II 6 Port 5G antenna, please download the datasheet and contact with any questions.

While you are here, check out the Coach II antenna.

Helium outdoor antennas things to check before you buy

The Helium network offering low power coverage across the world is rapidly growing in popularity. Across the world, as Helium miners are being deployed, people are looking at outdoor omni-directional antennas to optimise coverage from each miner installed.

This brief comment is going to focus on build quality.

There are quite a few outdoor antennas on the market, but selecting one with build quality good enough to be permanently installed outdoors without falling apart is critical.

Many low (and very low) cost antennas are available from online market places. Ignoring poor RF performance for now, many of these low cost antennas suffer from poor build quality or inferior materials and are unlikely to survive one average winter outdoors.

Our suggestion is to look for European-manufactured Helium outdoor antennas that tend to focus on quality materials and not solely on price. One particular area to focus on is the sheath or tube as poor materials weather and crack very rapidly leading to unit failure. A proven, durable option is an antenna with a fibreglass tube which will withstand many winter’s deployment without suffering weather or UV-degradation.

Also check the brackets/clamps that come with antenna. Are they fit for purpose? Is the antenna secure enough when mounted?

There is nothing worse than having to replace the antenna you took the trouble to install three months ago due poor survivability of the materials.

Just in case you’re interested, here is a link where you can purchase quality fibreglass tube 868 MHz antennas.



SMP-5G Compact Directional Indooor Outdoor Panel Antenna

The SMP-5G Compact Directional Indooor Outdoor Panel Antenna from Sirio is a new 5G multiband antenna. With a wide frequency range from 698 MHz to 3800 MHz, this exceptional antenna offers gain up to a peak of 12 dBi.  Fed by a single low loss cable terminated as standard by a SMA connector, it can be wall or pole mounted.

The SMP-5G compact directional antenna can be very easily and quickly mounted for rapid installation and can be combined with custom RF cables for applications requiring specific cable runs.

Download the datasheet for full technical specifications.

Other panel antennas from Sirio include the 4G Single Port directional antenna and the 4G MIMO directional antenna.

QAD – 5G AllDisc High Performance Low Profile Antenna in stock

The 5G AllDisc High Performance low profile antenna is in stock. Manufactured by Smarteq, this antenna is best in class for its gain vs. size raito. Measuring 138mm in diameter and 55mm in height, the AllDisc offers peak gain, when mounted on a groundplan, from 3.5 dbi to 7 dBi.

This antenna covers 4G, 5G as well as 2G and 3G frequencies from 690 MHz to 3800 MHz. It is ideal for applications where a permanently mounted antenna is required. It is especially suited to kioks, outdoor enclosures, wireless CCTV and security delpoments. If you are looking for a low profile antenna with optimal gain, then look no further. When mounted correctly, the IP rating of the antenna is IP6K9K class.

The standard model we are stocking has a 2.5M RG316 cable and SMA-Male connector.

For quoations on the 5G AllDisc High Performance low profile antenna, please contact us. Small quantities can be ordered via the Connex webshop.

For a smaller 4G antenna, check out the SmartDisc.

YS8066 800/868 MHz robust directional yagi antenna

The YS8066 800/868 MHz robust directional yagi antenna from Laird is one of family of antennas in the Silver Series range. Offering 9 dBd gain at 868 MHz, the YS8066 yagi is designed for long-lasting performance.

Ideal for 868 MHz applications including LoRa, NB-IoT, Sigfox and other unlicenced frequency deployments, the YS8066 is particularly suited where a high gain, robust and durable antenna is required. Supplied with a pole mount kit for rapid mast deployment, the YS8066 800/868 MHz robust is terminated in N-Female connector ready to connect to custom low loss cables for the application. Check out our RF195, RF240 and RF400 low loss cable options.

Supplied fully assembled and ready to install, each YS8066 yagi antenna is fully tuned on a network analyser for best power match and VSWR before leaving the factory.

WBTR3060 Wideband 3-6 GHz compact terminal antenna

The WBTR3060 Wideband 3-6 GHz is a compact terminal antenna designed to complement UWB modules. Markets for UWB include ePOS and retail, automotive, agriculture, building control and automation, factory automation, healthcare, safety and security, warehousing and logistics. The WBTR3060 antenna can be terminal mounted via an SMA-Male connector to provide a flexible antenna solution.

With gain ranging from 2.3 dBi to 3.72 dBi across the 3.0 to 6.0 GHz bandwidth and VSWR of less than 2.5:1, the WBTR3060 Wideband 3-6 GHz antenna offers exceptional performance in a small package. Its hinged connector locks in the three positions allowing the radiating element to be vertically or horizontally positioned. It is also groundplane independent so a metal groundplane for mounting is not required.

For more information and pricing, please contact us or your local EAD distributor.





LPO6938-4P-NB-SM4 5G four port MIMO surface mount antenna

The LMO6938-4p-NB-SM4 is a 5G four port MIMO surface mount antenna for permanent mounting. Operating from 698-3800 MHz covering 5G and 4G/LTE frequencies, this antenna has four wideband radiating elements.

Offering robust RF performance in a compact housing, the LPO6938-4P-NB-SM4 is ideal for environments where multiple antenna elements are required helping to reduce the number of physical antennas deployed in installations for 5G bonded applications, high bandwidth/ high speed networks, 5G access and high definition video deployments.

The LPO6938-4P 5G/4G four port MIMO compact outdoor omni antenna is terminated in 4 x SMA-Male pigtails as standard and can be combined with RF195, RF240 and RF400 low loss cables customised to suit the application. When correctly mounted onto a flat surface the antenna has an IP67 ingress protection rating.





LPO6938-4P-WB 5G/4G MIMO outdoor wall/pole omni antenna

The LPO6938-4P-WB 5G/4G MIMO compact outdoor omni antenna is designed for pole, wall or enclosure mount installations for 5G / 4G access applications. Based on our leading LPO antenna platform, this antenna is, as standard, supplied on a UV-resistant ASA mounting bracket.

Offering robust RF performance in a compact housing, the LPO6938-4P is ideal for environments where multiple antenna elements are required helping to reduce the number of physical antennas deployed in installations for 5G bonded applications, high bandwidth/ high speed networks, 5G access and high definition video deployments.

The LPO6938-4P-WB 5G/4G MIMO compact outdoor omni antenna in terminated in 4 x SMA-Male pigtails as standard and can be combined with low loss extension cables customised to suit the application. This antenna when mounted correctly on the mounting bracket or enclosure is waterproof to IP67 standard.

For a two port, dual polarised MIMO antenna covering 5G, check out the LMO6138 antenna which for customers in the UK can be purchased via the Connex webshop.

For more information on the LPO6938-4P-WB, please contact us or your local EAD distributor/reseller.

Compact 5G Outdoor Omni 4 Port MIMO Antenna introduced

A Compact 5G outdoor omni 4 port MIMO antenna has been introduced by EAD. The LPO6938-4P antenna offers an innovative solution for 5G/4G access where a discreet, but high performing antenna is required.

Populated with four wideband 698-3800 MHz antenna elements, the antenna is housed in our popular LPO radome and is mounted on a very durable 316 Stainless Steel bracket for pole- or wall-mounting. Fed by 4 SMA pigtail cables, the antenna can be combined with RF195, RF240 and RF400 low loss cable assemblies according to the requirements of the installation.

Ideal for bonded applications, broadband access requiring multiple antenna ports and high bandwidth applications, the LPO6938-4P packs a punch despite its compact measurements. This 5G compact outdoor omni reduces the requirements for antennas enabling 4 port routers to use one antenna instead of two 2 port antennas.

For pricing and availability on the LPO6938-4P antenna, please contact us.

For a dual polarised MIMO Omni covering 698-3800 MHz, check out our LMO6138 antenna which is also available from our webshop.

WIMO2458 4-Port WiFi Dual Band Omni-directional Antenna

The WIMO2458 4-Port WiFi Dual Band Omni-directional Antenna is designed for continuous outdoor deployment. Housing four 2.4/5 GHz antenna elements, the WIMO2458 antenna is a compact solution for wall, pole or non-metal enclosure mounting.

Ideal for outdoor pole- and wall-mounted applications in environments where traditional ceiling mount antennas are undesirable, the WIMO2458 is a compact alternative for dual band WLAN installations, buildings and campuses hospitality, transportation and retail.

With almost 4 dBi gain in the 2.4 GHz band and more than 5 dBi gain in the 5 GHz band, the WIMO2458 4-Port WiFi antenna offers consistent RF performance across the bands. With a radome height of 187mm and a diameter at the base of 106mm, the antenna is relatively discreet for most installations and can be fed by low loss coaxial cables as required.

The WIMO2458 is part of our MIMO Omni range – check out the 5/GLTE version the LMO6138,

LMO7270 MIMO antennas available in Italy from Reweb

EAD’s popular LMO7270 MIMO antennas are now available from Reweb, our distribution partner for these antennas in Italy.

The LMO product line from EAD encompasses the LMO7270 antenna, the LMO6138 antenna – the 4G/5G version, a LMO7270/G with an integrated active GNSS antenna and the LMO4547 antenna for LTE450 applications.

The LMO antennas are ideal for 4G / 5G access applications, wireless CCTV and security, bonded 4G deployments, lesiure marine and fixed or mobile broadband services. With a variety of mounting options including pole, wall and 1″ 14 marine mounts, the LMO antennas are robust, compact and offer consistent RF performance.

Reweb is based in Reggio Emilia in Italy. Phone: +39 0522 171 2600. Contact: Massimiliano Cavandol m.cavandoli@reweb.it

More information in Italian can be found here.





GNS3602 GPS GLONASS passive internal antenna

The GNS3602 GPS GLONASS passive internal antenna is fed by a microcoax cable and IPEX-terminated (U.FL compatible) cable. The GNS3602 is designed to be integrated into GPS / GLONASS enabled devices and terminals where the GNSS module can only accommodate passive GPS/GLONASS antennas (GNSSS antennas without a LNA Low Noise Amplifier).

The GNS3602 is nicely compact measuring just 20 x 20 x 6mm and offers 1.5 dB gain at centre frequency. Ideal for portable and mobile devices, this antenna can be easily designed into tracking and location-based applications.

The GPS3602 is the GPS only version of this antenna.

Other cable lengths and connector configurations are possible, please contact EAD for details.

Also check out our GPS-Stubby antennas for active GPS stubby antenna solution.

Innovative LTE 450 antenna solutions from EAD

LTE 450 antenna solutions are available from EAD. Based on our portfolio of innovative designs, antennas can be supplied for LTE 410 or LTE 450 networks.

Offering both MIMO and SISO antenna solutions, EAD has a range of omni-directional antennas to complete LTE 450 and LTE 410 deployments.

The LMO4547 antenna is a wall-mount, pole-mount or non-metal surface mount, dual polarized MIMO omni-antenna. With one vertically polarized element and one horizontally polarized element, the LMO4547 is compact and designed for permanent outdoor deployment. It can be deployed for fixed site access, mobile applications or off-shore marine environments.

The WCO-450-MIMO-WMB is a compact MIMO, durable and robust 450-470 MHz outdoor omni antenna. Based on our proven WCO (waterproof compact omni) platform, this antenna can be wall-mounted and is ideal for commercial and industrial applications requiring LTE 450 access. This antenna can easily be re-tuned for 410-430 MHz making it ideal for LTE 410 applications too.

The WCO-450-WMB is a wall-mount 450-470 MHz SISO antenna designed for continuous outdoor deployment. The UV-resistant LURAN sheath is mounted onto N-Female connector barrel which is attached to a stainless steel L-bracket.

All 3 antennas are terminated directly in a connector or a short pigtail so can be easily deployed with jumper cables such as RF195 or RF240.

For a mobile applications where a non-permanently mount antenna is required, the LP-MAG-450 is robust solution. Once again based on our proven WCO platform, the WCO antenna is married with a rugged magnetic mount thereby offering a durable installation for public service, industrial and commercial vehicles and systems.

For terminal mount the WCO 410 and 450 MHz antennas can be fitted with TNC Male / TNC-Female / N-Male and N-Female connectors to to provide terminal mount or through-hole mount antennas for fixed and mobile terminals and enclosures.

For more information and pricing on our LTE 450 antennas and LTE 410 antennas, please contact us.







WCO-450-MIMO-WMB 450 MHz MIMO Wall-Mount Omni Antenna

The WCO-450-MIMO-WMB is an outdoor MIMO omni antenna. It is based on our popular WCO antenna platform. The gain of each element is 2 dBi and it is complemented by RF195 and RF240 low loss cables. The antennas are mounted on a stainless steel bracket which can be easily affixed to a wall.

Ideal for LTE 450 and UHF applications where MIMO or diversity functionality is required, the WCO-450-MIMO-WMB is robust and durable.  This makes it very suitable for industrial and commercial applications where antenna durabilty is a key elment of the installation. The antenna elements are constructed using a UV-resistant Luran sheath and use the stainless steel bracket as a ground plane. Both antennas are terminated in a N-Female connector.

For a pole-mount/wall-mount dome style 450 MHz MIMO antenna, check out the LMO4547.

For a single element compact omni for 450-470 MHz, take a look at the WCO-450.

LMO6138 5G MIMO omni antenna now shipping

EAD is pleased to announced that the 5G version of the popular LMO7270 antenna is now shipping. The LMO6138 5G MIMO antenna operates at frequencies from 617 MHz to 3800 MHz covering the most widely used 5G, 4G and LTE frequencies.

Just like the LMO7270 antenna, the LMO6138 is an outdoor pole, wall or non-metal surface mount antenna. With dual polarized elements, this antenna offers exceptional performance in a compact radome and its flexibility of mounting options facilitates many types of installation.

Combined with RF195, RF240 and RF400 cables, the LMO6138 can be adapted to many installations for security, HD video, business continuity and broadband access applications.

For retail customers in Europe, the LMO6138 5G MIMO antenna can be purchased via the Connex Webshop. For larger quantities, please contact your local EAD dealer or distributor or contact us directly with your requirements.

LPBMLPVMB/LTE 5G Multiband robust low profile antenna

The LPBMLPVMB/LTE 5G Multiband low profile antenna from PCTEL is a compact and robust antenna for mobile and fixed applications. It covers 5G and 4G/LTE frequencies from 698 to 3800 MHz. It is based on the same design as the popular BMLPVMB/LTE.

With a gain of 3 dBi, this antenna offers exceptional performance in a small package. It can be mated with magnetic or permanent mount bases to enable flexibility of installation. It is of a rugged design, with a UV-stable XENOY 572OU-7014 radome and once mounted correctly can offer IP67 protection.

Please contact us for more information. For European customers the LPBMLPVMB/LTE 5G Multiband antenna can be purchased bundled with a magnetic mount and 4M cable with a choice of connectors via the Connex website.





WCO 450 MHz Compact Outdoor Omni Antenna

The WCO 450 MHz compact waterproof omni-directional antenna is a robust solution for outdoor applications. Housed in a rigid, robust sheath, the WCO antenna is a durable solution for UHF and LTE 450 MHz deployments

The sheath length is 116mm long and the radiating element is groundplane dependent so the antenna should mount onto a metal surface, a metal wall bracket or have a proximity groundplane available. There are various connector options including N-Female Bulkhead mount, N-Male (as pictured) and TNC -Male.

The WCO 450 MHz compact omni antenna with a N-Female connector can optionally be mounted on a L-bracket for wall-mounted applications.

For our 450 MHz MIMO omni antenna, check out the LMO4547 antenna.

AllDisc Combi GNSS LTE dual WiFi low profile antenna

The AllDisc Combi GNSS MIMO-WiFi antenna is 5G ready and a low profile solution with durable design. This antenna is ground plane independent and enables flexible and easy deployments. It is perfect for M2M applications such as fleet management, track and trace and smart metering.

It offers one 4G/LTE/5G element, one active GNSS element and two WiFi elements inside the robust, stud-mounted radome. With dimensions on 138 mm in diameter and 55mm in height, this AllDisc Combi GNSS antenna is a compact solution for a multi-element product whilst offering exceptional RF performance.

Ideal for roof-mounted, enclosure-mounted or indeed bracket-mounted applications, the AllDisc from Smarteq has excellent build quality and is well-suited to continuous outdoor deployment thanks to it IP6K9K design.

There is a LTE only version of this antenna, the AllDisc.

A selection of  Smarteq antennas can be purchased via the Connex webshop.

868 915 MHz High Gain Omni-directional antenna now shipping

The WMO86916  868 915 MHz High Gain outdoor omni-directional antenna is now in stock and shipping. Offering 5.8 dBi gain at both 868 and 915 MHz frequencies, this antenna is compact and robust. Supplied with 5M white low loss cable as standard, the WMO86916 antenna is fitted with a L-bracke for wall-mounting.

Ideal for LoRa, Sigfox and LPWAN deployments, this antenna is suitable for terminals located in areas of weaker signal and on the fringes of the network.

For small volumes, European customers can purchase this antenna from the Connex webshop.

For smaller, more compact antennas, please check out the DMO8684 and the WCO-868-WMB.

LoRa Sigfox outdoor omnis address terminal mount applications

LoRa Sigfox outdoor omnis from EAD are ideal for terminal and enclosure mounting. They are based on our WCO (Waterproof Compact Omni) antenna platform. Using either N-Female through-hole mount or N-Male connectors, they are robust and durable and offer consistent RF performance.

The antenna element is housed in a UV-resistant, black Luran Sheath. The sheath measures approximately 116mm in overall length and is screwed and bonded onto the barrel of the connector for durability.

For 868 MHz LoRa and SigFox applications, check out the WCO-868.

For 915 MHz Lora and SigFox applications, check out the WCO-915.

Our LoRa Sigfox outdoor omnis can offer flexible mounting options with other connectors such as TNC-Male available on request or alternatively the antennas with N-Female connector can be supplied with a L-bracket for wall-mounting and complemented with a RF195 or RF240 low loss cable.

Our WMO86916 antenna is a high gain (5.8 dBi) wall-mount antenna that can be used to extend the range of 868 MHz and 915 MHz deployments. For customers in Europe wanting low quantities, this can be purchased via the Connex Webshop.

The WCO range can also be supplied at other frequencies including 169, 433, 450 MHz and 2.4 GHz. For more information and a customised quotation, please feel free to contact us.
