WTR7270 – Portable 4G LTE Terminal Antenna

The WTR7270 is a 4G LTE Terminal Antenna designed for fixed and mobile 4G LTE terminal products such as routers, modems and gateways

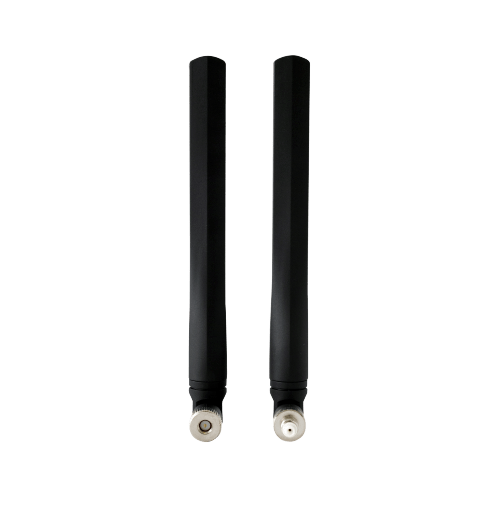

The WTR7270 is 4G LTE terminal antenna, a groundplane independent dipole, covering worldwide LTE, 4G, 3G and GSM bands including 700/800/900/1800/2100 and 2600 MHz for LTE, Cellular, GSM and UMTS (3G) operation. It has a robust and discreet injection-moulded cover and comes with SMA-Male swivel joint connector that can lock in three positions. The WTR7270 offers a gain of 1 dBi.

The WTR7270 4G LTE terminal antenna is an ideal solution for LTE and penta-band cellular applications including wireless routers, modems and access points and for telemetry and telematics where comprehensive LTE, cellular, GSM and 3G capability is required. Two WTR7270 antennas can be used together on terminals and routers requiring MIMO or diversity functionality.

The formal part number is FWTR35292-SM-KR. For customers in Europe requiring small quantities, you can purchase the WTR7270 via the Connex webshop.

For a LTE stubby antenna, check out the LTE-Stubby.
