The WCO-450-WMB is a 450 MHz compact outdoor omni antenna designed for wall-mount applications for providing access to 450-470 MHz LTE or UHF networks.
Based on our WCO-XX-WMB platform, this antenna is comprised of a UV-resistant, flame retardant sheath and stainless steel L-bracket for wall-mounting. This antenna combined with low loss extension cables such as RF240 is an effective and discreet solution for installations where the antenna cannot be located close to the router or radio.
Other versions for the WCO-XX-WMB include 2.4 GHz and 433 MHz. 915 and 868 MHz versions are also available. For WCO-450-WMB pricing and lead times, please contact us.
We can supply other frequencies based on the WCO-XX-WMB platform from 150 MHz to 6 GHz. Please contact us for details.
The new CLW LTE WiFi puck antenna is designed to offer concurrent 4G/LTE and WiFi communications in a single low profile antenna enclosure. With one SMA cable for LTE and one RP-SMA for WiFi, the antenna connects to each port on a terminal or router offering multiband connectivity. Cable lengths and connectors are configurable.
The CLW antenna mounts via a robust threaded stub and locking nut from underneath and has a gasket providing a waterproof seal when correctly mounted to a flat surface.
Other products in the same stable are the CMO – 2 x LTE, CLWG – 1 x LTE, 1 x WiFi and 1 x GNSS and the CMG 2 x LTE and 1 x GNSS. For other combinations or variations on the theme, please contact us or use our Antenna Configurator.
The LPO Multiband MIMO antenna has been announced by EAD. Offering 2 x LTE, 2 x WiFi and one active GPS/GLONASS antenna element, the LPO is a robust and practical solution for bus, truck, transit and vehicle applications where 5 antennas for multiband communications need to be installed.
With excellent RF performance in an enclosure 140mm in diameter and 80mm in height, the LPO is permanently mounted via a threaded stud and locking nut underneath. Gain figures for LTE are 3-4 dBi and 5 dBi for both 2.4 and 5 GHz WiFi bands.
For more information and availability on the LPO antenna, please contact EAD or your local EAD representative.
The LPO is a 5 Element MIMO LTE WiFi GNSS antenna suitable for vehicle roof permanent mounting for multi-band tracking and telematics applications. Offering 2 x LTE antenna elements, 2 x dual band WiFi elements and 1 x GPS/GLONASS element, the LPO is a robust, permanent mount multiband antenna idea for telematics, transit and fleet applications where multiple antennas are required.
Mounting via one single point, the LPO does not compromise on performance with LTE elements offering 3-4 dBi gain and the WiFi elements offering 5 dBi gain on both bands.
The LPO is 140mm in diameter and 80mm in height with a threaded stud and locking nut underneath. The cables exit through the middle of the mounting stud.
For more information on the LPO, please contact us or your local EAD distributor.
European customers can purchase small quantities of the LPO antenna via the Connex webshop.
For a single LTE, single WiFi and GPS/GLONASS, why not take a look at the CLWG antenna.
The EAD MIMO-Blade is a IP67 LTE MIMO blade antenna designed for fixed and mobile applications. Based on MIMO (2 x LTE element) technology, this antenna is a flat antenna with a variety of mounting options. Ideally suited to inside and outside vehicle, industrial and commercial LTE deployments, the MIMO-Blade is a robust and durable antenna solution.
It is encapsulated in black thermoplastic, fully sealed and waterproof. It has been passed as IP67 by an independent test house and with strain relief at the cable exits, it designed to survive harsher than normal environments.
Supplied as standard with 2 suction cups for mounting, the MIMO-Blade can also be mounted with plastic screws, cable ties, adhesive pads and velcro. The antenna is fed by 2 RG174 cables and a choice of connectors including SMA, TS9, FME and CRC9.
Typical installations cover automotive telematics, telemetry systems, kiosk and vending systems as well as wireless security, CCTV and alarm deployments.
The MIMO-Blade is available through all good EAD distributors and resellers and also available to European customers via the Connex webshop.
Roof and enclosure-mounted low profile 4G LTE antennas are in demand as the IoT bandwagon rolls on so here are 4 suggestions for permanent mount puck style antennas for your application:
This is a two element puck antenna, called the CMO, incorporating two antenna elements operating from 690-960/1710-2690 MHz for 4G LTE applications. Permanently mount by way of stud underneath and locking nut, this antenna has a gasket underneath that provides a waterproof seal once mounted. The antenna mounts onto a ground plane or metal surface and has one cable for each antenna element. Ideal for Wireless CCTV, security and broadband applications, the CMO offers robust RF performance in a compact package.

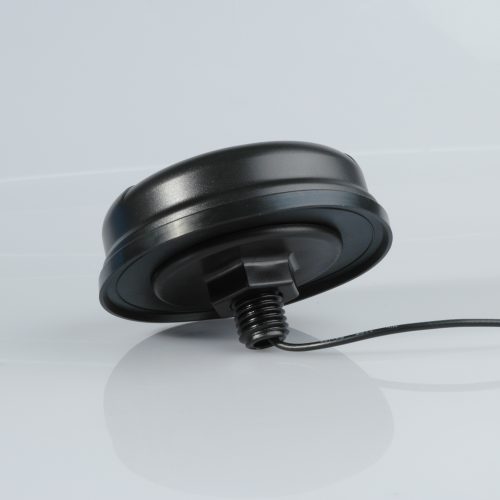

Based on the CMO antenna mechanical design, this antenna is called the CLW. It offers 1 x 4G LTE element and 1 x dual band WiFi element for permanent mounting onto a groundplane or metal surface. Suitable for applications where concurrent LTE and WiFi communications are required, the antenna lends itself well to fixed and/or mobile installations.
The CMG antenna is also very much based on the CMO antenna. It offers 2 x 4G LTE elements, but also with an added active GPS/GLONASS antenna element. This enables LTE communications concurrently with GPS/GLONASS positioning. Mounted on a metal vehicle roof, this antenna provides a watertight and robust solution for mobile IoT installations.
The CLWG antenna is based on the same blueprint as the CMG antenna, however we have replaced 1 x 4G LTE with a dual band WiFi element. This delivers 1 x 4G LTE, 1 x WiFi and 1 x GNSS in compact and robust package suitable for multiband telematics application where installing 2 or 3 antennas is undesirable.
All these low profile 4G LTE antennas are based on a proven common platform that can be customised if required. Please feel free to use our Antenna Configurator to request a solution that can be designed for your application.
For more information, please feel free to contact us.
RF240 coaxial cable is a 6mm diameter low loss cable suitable to operate as a jumper cable for outdoor wireless antennas. With excellent RF properties in a small diameter sheath, RF240 cable lends itself well to cable runs up to 15-20M for cellular applications.
With an outer diameter of 6.10mm, it is still pretty flexible. It has excellent RF performance with good attentuation figures across the bands up to 3 GHz. The RF240 is an equivalent to LMR240 cable, but a more cost effective alternative. We can offer this cable pre-terminated with SMA, N-Type, TNC and other RF connectors as required. As we assemble these cables in-house we can quickly accommodate customer requests for specific lengths or connector types. RF240 complements EAD omni antennas such as the FGO and LMO antenna or the directional panel antenna, the LPM8270.
For small quantity requirements of pre-configured RF240 6mm diameter low loss cable purchases can be made via the Connex webshop. We offer 3M, 5M, 8M, 10M and 15M cables as standard with various connector options. The individual cables can be purchased via the links below:

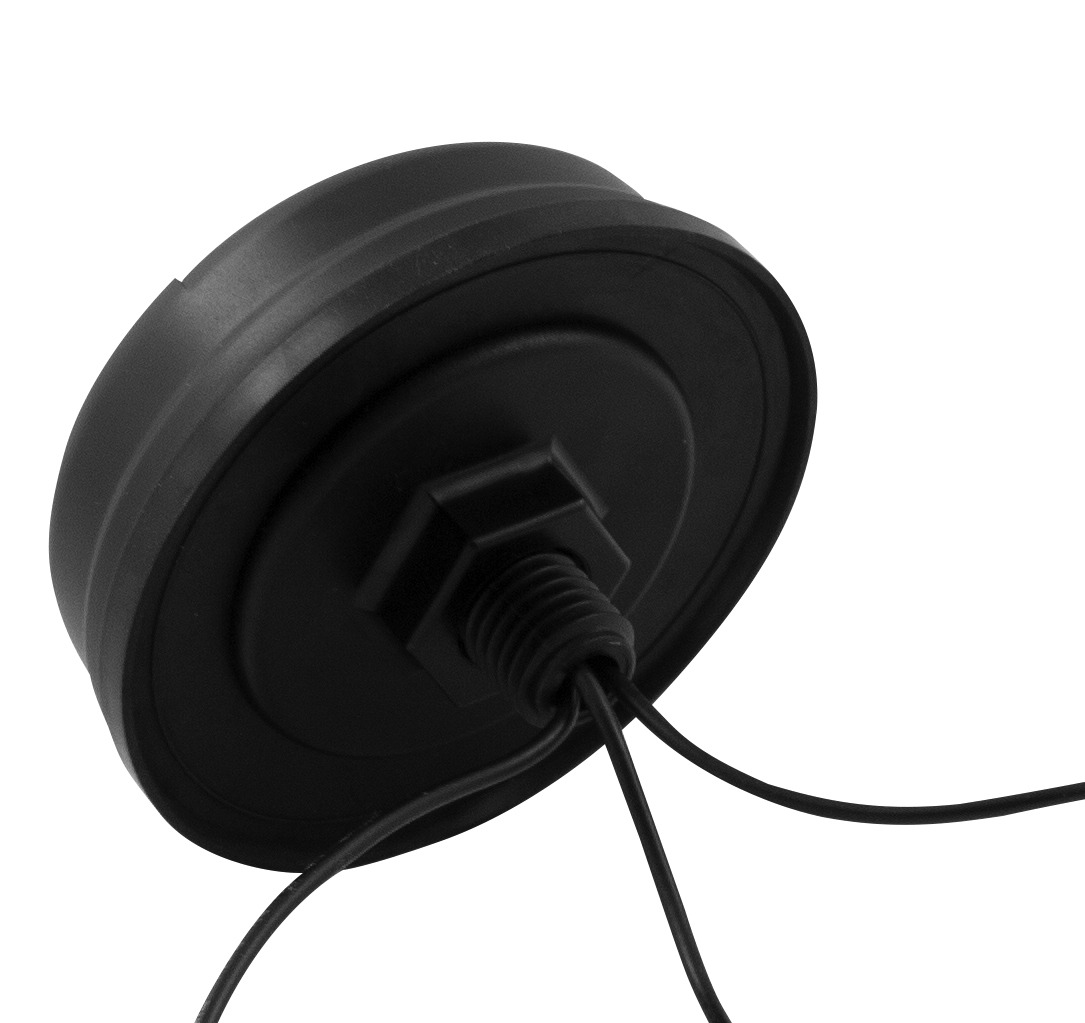

Today EAD introduces a new LTE WiFi GNSS puck antenna. We have designed it for vehicle roof or metal surface-mounting. Based on the versatile CPx antenna platform, the CLWG is a discreet and robust antenna. We believe it is ideal for multi-band telematics applications.
As a result of its dimensions, just 106 mm in diameter and 33.5mm in height, this antenna is compact without compromising on performance. As standard, we configure the antenna with three separate cables. One cable each for LTE, WiFI and GNSS. You can customise the cable lengths and connectors as you wish, however we offer 3M cable length and SMA-Male connectors as standard.
We draw your attention to the CLWG’s stable mate, the CMG antenna. The CMG is a 2 x LTE and GNSS puck antenna, part of the same range of robust puck antenna products.
EAD today introduces a LTE MIMO outdoor omni with GNSS capability called the LMO7270/G.
We have added an active GNSS element to our LMO7270 antenna as a result enabling positioning functionality alongside LTE connectivity. Housed in a durable radome, the LMO7270/G offers a flexible outdoor antenna solution. The antenna mounts on either a wall/pole bracket or a non-metal enclosure or surface.
Applications for the LMO7270/G include leisure marine vessels and wireless CCTV and security. Both of these deployments have a need for MIMO LTE communications and often require positioning information as well.
For more information and pricing on the LMO7270/G please contact your local EAD reseller or distributor.
The LMO7270/G is a LTE MIMO GNSS outdoor omni antenna suitable for LTE access applications requiring a MIMO antenna as well as active GPS/GLONASS functionality. Available either as non-metal enclosure mount or via an optional pole/wall-mount bracket, this antenna is an attractive and effective solution.
Ideal as solution for leisure marine vessels or for wireless security/CCTV systems, the LMO7270/G is complemented by RF240 and RF400 low loss cables enhancing the possibilities for installation.
For a LTE MIMO omni antenna without GNSS, functionality please check out the LMO7270 antenna.
For low loss jumper cables for this antenna, please look carefully at RF240 and RF400 coaxial cables.
The CLWG is a combined 4G WiFi GNSS low profile puck antenna with one feed for each antenna element i.e one 4G/LTE multiband element, one 2.4/5 GHz WiFi element and one GPS/GLONASS element.
Designed for permanent mounting via a mounting stud onto a metal surface, the CLWG is a compact antenna for multiband wireless deployments in either fixed or mobile applications. The CLWG is highly useful in environments where space is limited or three separate antennas are undesirable.
As standard, the cables are 3M long and each terminated with SMA-Male plug connector.
For simply 2 x LTE and GNSS, you could consider the CMG antenna.
The CLW antenna is a 4G LTE WiFi low profile puck antenna with one 4G/LTE multiband element and one WiFI element. Mounted via a stud underneath for permanent mounting, the CLW is designed for continuous outdoor use on vehicles, enclosures, cabinets and other devices for applications such as telematics, wireless CCTV, security and telemetry/remote monitoring.
Fed by one cable for the 4G/LTE multiband element and one cable for the WiFi, the CLW is a compact and robust antenna based on the proven CPO antenna platform.
The CMO is a dual 4G/LTE antenna in the same form factor.
A version with GPS/GLONASS called the CLWG is also available.
The UWB45727 antenna is a 450 LTE outdoor omni antenna operating and 450-470 MHz / 700-2700 MHz frequencies.
With a gain of 2.5 dBi on the 450 MHz band and a minimum of 4 dBi on the upper bands, the UWB45727 with its single feed N-Female connector is an innovative solution for all-band LTE applications requiring a single one-antenna-fits-all solution.
Housed in a durable fibreglass sheath, the UWB45727 is a robust solution for continuous outdooor deployment.
Supplied with an Aluminium wall-mount L-bracket, it mates to a range of low loss cables so the installation can be customised to the cable length required.
The CMG antenna is an IP67 dual LTE GNSS puck antenna (2 x LTE + 1 x GPS/GLONASS) designed for mobile as well as fixed LTE applications.
Housed in a very robust package, the CMG is mounted by way of a threaded mounting stud with the 3 cables exiting through the mounting stud.
Once mounted via a 20mm hole, the CMG is sealed and waterproof and suitable for mounting onto vehicles, industrial machinery and enclosures. The recommended cable length is up to 3M. With two LTE elements, the CMG supports MIMO routers for LTE and offers GPS/GLONASS signal reception for positioning. It is recommended that the CMG is mounted onto a metal surface.
Our CLW and our CLWG platforms offer LTE with WiFI or LTE with WiFi and GNSS respectively.
The LMO4547 is a MIMO (2 port) 450-470 MHz Multiband dual polarised omni-directional antenna. Housed in a durable radome, the LMO4547 450 MHz MIMO omni antenna is suitable for outdoor applications including leisure marine environments to improve reception of LTE 450 MHz signals, especially for wireless broadband, security and CCTV deployments.
The frequencies supported are 450-470 MHz.
The LMO4547 measures approximately 187mm in height and 106mm at the base. It will be available with or without the wall/pole mount bracket and fed by two short pigtail cables, allowing for longer jumper cables to be connected for specific cable runs.
The LMO4547 450 MHZ mimo omni antenna is supplied with a gasket and a moulded nut as standard so the antenna can be installed as a permanent, through-hole mount solution to be mounted onto a non-metal surface or enclosure. Alternatively, the antenna can be ordered to include brackets for wall or pole mount.
The LTF7270 is a multiband multi-position, articulating, 4G LTE captive mount terminal antenna for modems, routers and devices that are running a radio module with U.FL connectors.
The LTF7270 offers a terminal mount antenna solution without the need to use a bulkhead (or panelmount) SMA connector on the enclosure. It has articulating base that locks in 3 positions, vertical, horizontal and at 45 degrees. The antennas mount by way of a threaded stud and are held in place by a locking nut. Through the middle of the stud a coaxial cable feeds the antennas via an IPEX (U.FL compatible) connector.
The LTF7270 is ideal for and for applications where users should be discouraged from removing the antenna from the terminal or device.
The WTR7270 is 4G LTE terminal antenna, a groundplane independent dipole, covering worldwide LTE, 4G, 3G and GSM bands including 700/800/900/1800/2100 and 2600 MHz for LTE, Cellular, GSM and UMTS (3G) operation. It has a robust and discreet injection-moulded cover and comes with SMA-Male swivel joint connector that can lock in three positions. The WTR7270 offers a gain of 1 dBi.
The WTR7270 4G LTE terminal antenna is an ideal solution for LTE and penta-band cellular applications including wireless routers, modems and access points and for telemetry and telematics where comprehensive LTE, cellular, GSM and 3G capability is required. Two WTR7270 antennas can be used together on terminals and routers requiring MIMO or diversity functionality.
The formal part number is FWTR35292-SM-KR. For customers in Europe requiring small quantities, you can purchase the WTR7270 via the Connex webshop.
For a LTE stubby antenna, check out the LTE-Stubby.
The L-Mag is a 5G 4G LTE magnetic antenna operating across the 700-2700/3400-3800 MHz frequency bands and designed for fixed and mobile wireless applications. A compact radiating element housed in a moulded sheath is mounted onto a magnetic base to facilitate 4G/LTE communications including the 700 MHz LTE band, European LTE bands at 800 MHz, 1800 MHz and 2600 MHz and 5G Bands at 3400-3800 MHz.
Measuring just 110mm in overall length with a base diameter of 30mm excluding the cable and connector, the L-Mag is compact, however is large enough to comfortably cover the frequency bands for 5G, LTE, 4G, 3G, GSM and cellular connectivity. As standard, the L-Mag is supplied with a 3M RG174 cable and a SMA-Male connector.
UK customers can order the L-Mag via the Connex webshop.
The formal part code for this part is FLMG35336-SM-3K.
For a 4G terminal antenna, please take a look at the WTR7270 antenna.
The FGO is a 4G LTE high gain omni antenna covering 690-960/1710-2170/2500-2700 i.e. LTE, 4G, 3G, GSM and cellular frequency bands.
With a peak gain of 5dBi across the lower, middle and upper bands respectively, the FGO is unrivalled where a discrete, but high gain antenna is required, especially in 4G access, CCTV, security, metering and remote telemetry applications. The antenna is groundplane independent and can be mounted on a pole or on a wall.
The FGO is supplied with a robust bracket and is terminated in a N-Female connector.
Custom jumper cables can be assembled to the required configuration.
The LMO7270 is a 4G LTE outdoor MIMO omni antenna with dual polarised radiating elements. Housed in a durable radome, the LMO7270 antenna is suitable for outdoor applications including leisure marine environments to improve reception of 4G (LTE), 3G and GSM signals, especially for wireless broadband, security and CCTV deployments.
The frequencies supported are 700, 800, 900, 1800, 1900, 2100 and 2600 MHz covering all major 4G, LTE, GSM and 3G frequency bands.
The LMO7270 measures approximately 187mm in height and 106mm at the base. It is available with or without the wall/pole mount bracket and fed by two short pigtail cables, allowing for longer jumper cables such as BWL195, RG240 and RF400 to be connected for specific cable runs.
The LMO7270 antenna is supplied with a gasket and a moulded nut as standard so the antenna can be installed as a permanent, through-hole mount solution to be mounted onto a non-metal surface or enclosure. Alternatively, the antenna can be ordered to include brackets for wall or pole mount. A marine mount adapter for mating to standard 1 inch marine mounts is available.
European customers can order small quantities of the LMO7270 4G LTE outdoor MIMO omni antenna via the Connex webshop.
For a MIMO LTE puck antenna, please take a look at our CMO antenna.
The CMO is 4G LTE MIMO puck antenna operating at 4G/LTE multiband frequencies from 690-2700 MHz. A permanent, through-hole mount antenna, the CMO has two 4G/LTE/Multiband elements enabling MIMO operation in discreet, robust housing.
With peak gain ranging across the bands from 1 dBi to 3.5 dBi, the CMO offers an effective solution for mobile 4G and LTE MIMO applications offering support for 3G and GPRS services if required.
The CMO mounts via a threaded stud and is held in place by a robust locking nut. In conjunction with the gasket underneath, a waterproof seal against a flat mounting surface can be formed ensuring that the antenna is suited to continuous outdoor deployment. The CMO antenna operates most effectively if it is mounted onto a metal surface, enclosure or bracket. The mounting hole size is 20mm.
Supplied as standard with 2 x RG174 cables, the antenna can be customised with a number of connectors including SMA, TS9, FME, TNC, CRC9.
The CMG antenna is the CMO, but with an added GPS/GLONASS element.
European customers can purchase the CMO antenna via the Connex webshop.
The formal part number for the CMO is FCMO35303. For example, the CMO with 2M cables would be FCMO35303-SMSM-2K.
The MIMO-Blade is a 2 x LTE/4G multiband waterproof MIMO blade antenna designed to complement 4G and LTE routers, modems and gateways in fixed and mobile applications. Housed in a robust, durable cover and IP67 rated cover, the MIMO-Blade is a discreet solution for mounting on non-metal surfaces such as vehicle windows, dashboards, inside kiosks or terminals or in locations outside a vehicle or enclosure.
The MIMO-Blade is supplied with two RG174 cables and these can be specified to customer-required length and choices of connector, SMA-Male, FME-Female and TS9 connectors are popular. The MIMO-Blade antenna is fully IP67 compliant.
Applications that this MIMO antenna is used for include vehicle telematics, vending, kiosks and wireless video. The MIMO-Blade is supplied with removable suction cups for mounting and can also be mounted with adhesive tape, velcro, cable ties or plastic screws.
The MIMO-Blade can be purchased by European customers via the Connex webshop.
For a MIMO LTE omni antenna, take a look at the LMO7270 antenna.
For LTE flexible PCB antenna, the L-Flex is an attractive solution.
The CLG is a LTE GNSS puck antenna with one 4G/LTE multiband element and one GPS/GLONASS element. Mounted via a stud underneath, the CLG is low profile and designed for continuous outdoor use on vehicles, enclosures, cabinets and other devices for applications such as telematics, wireless CCTV, security and telemetry/remote monitoring.
Fed by one cable for the 4G/LTE multiband element and one cable for the GPS/GLONASS, the CLG puck antenna is a compact and robust antenna based on the proven CPO platform. This antenna is IP67 rated when mounted correctly onto a flat surface.
For a MIMO LTE and GNSS low profile puck antenna, please check out the CMG antenna.
