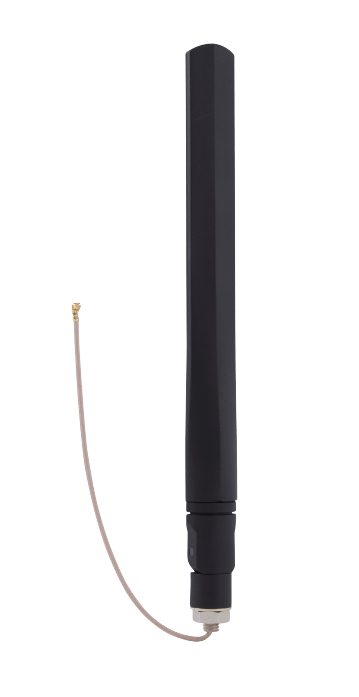

LTF7270 – 4G LTE captive mount terminal antenna

The LTF7270 is a 4G LTE captive mount terminal antenna designed for fixed and mobile terminals where the antenna cannot be easily removed

The LTF7270 is a multiband multi-position, articulating, 4G LTE captive mount terminal antenna for modems, routers and devices that are running a radio module with U.FL connectors.

The LTF7270 offers a terminal mount antenna solution without the need to use a bulkhead (or panelmount) SMA connector on the enclosure. It has articulating base that locks in 3 positions, vertical, horizontal and at 45 degrees. The antennas mount by way of a threaded stud and are held in place by a locking nut. Through the middle of the stud a coaxial cable feeds the antennas via an IPEX (U.FL compatible) connector.

The LTF7270 is ideal for and for applications where users should be discouraged from removing the antenna from the terminal or device.
