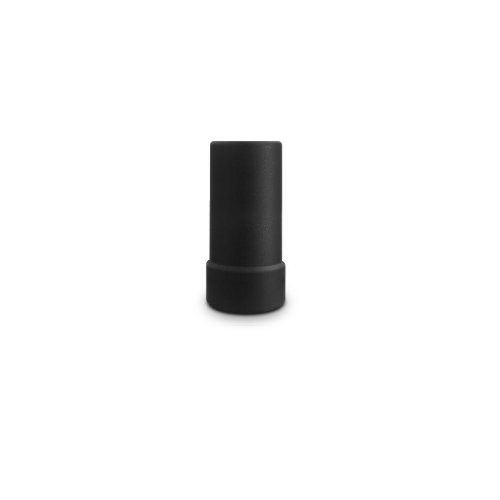

CH6601A D-Helix GNSS L1 L2 Active Antenna

The CH6601A D-Helix GNSS Active L1 L2 Antenna is small and lightweight solution for UAV, GIS surveying and precision positioning applications

The HX-CH6601A D-Helix GNSS active antenna is able to track visible satellites under challenging conditions, providing
positioning solutions with high precision and reliable data. Its stable phase center guarantees the accuracy of positioning within millimetre level, that can be widely used in plant protection, tree lines, also for UAV power patrol, GIS surveying where high precision operations are

Supporting GPS L1 and L2, GLONASS L1 and L2, Galileo E1 as well as Beiduo, QZSS and SBAS, this antenna offers a practical and very functional solution for mobile applications requiring precision positioning.

Measuring just 59mm in length and 27.5mm in diameter, the HX-CH6601A antenna weighs just 25g and offers IP67 protection against the elements.

The HX-CH6601A D-Helix GNSS active antenna LNA features excellent out-of-band rejection performance, which can suppress the electromagnetic interference, providing the stability and reliability of GNSS signals. Also it effectively avoids disconnection dangerous when UAVs are operated under tower and electric power patrol.

For more Harxon products, please visit their website and contact us for pricing and availability. Small quantities available from the Connex Webshop.
