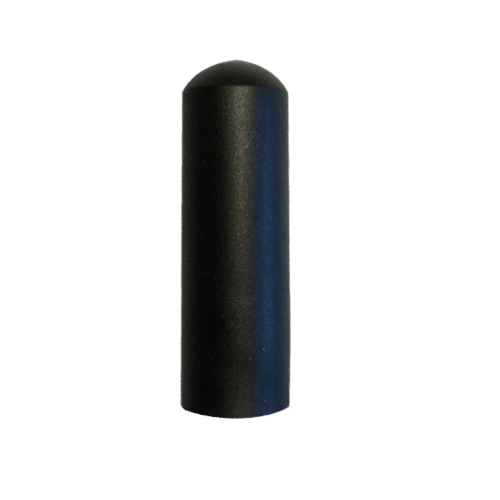

The ELX1115-SMA GNSS helix L1/L5 antenna is a compact solution for precision positioning, navigation and timing applications.
The ELX1115-SMA GNSS helix L1/L5 antenna is a compact solution for precision positioning, navigation and timing applications.
It is a dielectrically loaded helical antenna for L1 and L5 bands. It has an intrinsic band-pass filter response, tightly tuned to L1 and L5 frequency bands which provides protection from out of band interference. This antenna is robust and durable with high multi-frequency gain for its size and footprint. The ELX1115-SMA supports multi-constellations including GPS L1/L5, BeiDou B1, Galileo E1, GLONASS G1 and SBAS.
Key Features:
High gain across both bands
High accurate, focused phased centre
RHCP with excellent co-to-cross polarisation ratio
Immunity to detuning in near field
SMA connector mount – O-ring in base for ingress protection
Applications:
Drones/UAVs
Asset Tracking
Portable GNSS Terminals
Precision Navigation
Industrial / Agricultural Applications
The ELX1115-SMA GNSS helix antenna can also be supplied as an “embedded” version without the radome.
For a L1/L2 version check out the ELX1215-SMA.
