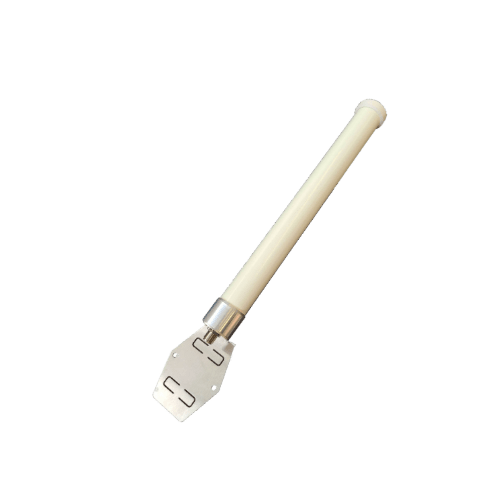

The FGO-Max 5G high gain outdoor omni is a wideband 5G (and 4G) antenna covering a frequency range from 600-4500 MHz. Based on our proven 4G FGO antenna, the FGO-Max is designed for long term, outdoor wall or pole mounting.
Offering robust and consistent RF performance with average gain of 3 dBi in the 600-960 MHz and average gain of 5.5 – 6.5 dBi in the higher bands, the FGO-Max is ideal for 5G access applications where a high gain single port outdoor antenna is required. It’s fibreglass sheath and stainless steel bracket lend themselves well to long term outdoor deployment make the antenna a good fit for utilities, security and monitoring/telemetry applications.
For durability of installation, the antenna is supplied with an AISI-304 stainless steel bracket and is mounted via the N-Female connectors and three M3 mounting screws. The bracket comes with a U-bolt for pole mounting (pole diameter 40-60mm) or the bracket can be affixed to a wall.
For a 5G MIMO outdoor omni, check out the LMO6138 or the LPO-Max.
For UK customers, EAD antennas can be ordered via the Connex webshop.
