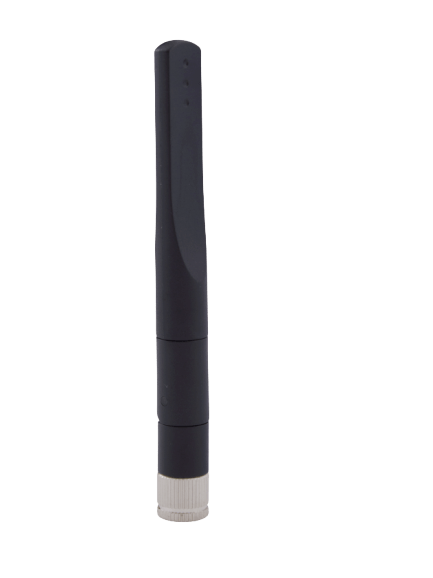

BTR2458 – dual band WLAN terminal antenna

The BTR2458 is a dual band WLAN terminal antenna operating at 2.4 and 5 GHz frequency bands and ideal for fixed and mobile WLAN terminals

The BTR2458 is a dual band WLAN terminal antenna operating at 2.4 – 2.5 GHz and 4.9-6.0 GHz. It is a compact, groundplane independent terminal antenna with a SMA-Male connector and is suitable for access points, gateways and terminals that require a dual band antenna for WLAN applications. For single band terminal antennas for WiFi, the BKR2400 might be a suitable option.

The BTR2458 has a gain of 2 dBi and a VSWR of less than 2:1 across the bands. When fully extended, the overall length of the antenna is less than 100mm. The compact design means that the antenna is a discreet solution for mobile applications where larger dual-band antennas could cause an obstruction or be cumbersome.

The two common part numbers are FBTR35160-SM-KR with SMA-Male connector and FBTR35160-RS-KR with RP-SMA connector.
